China isolation pipe 1/4" ID Manufacturers, Factory

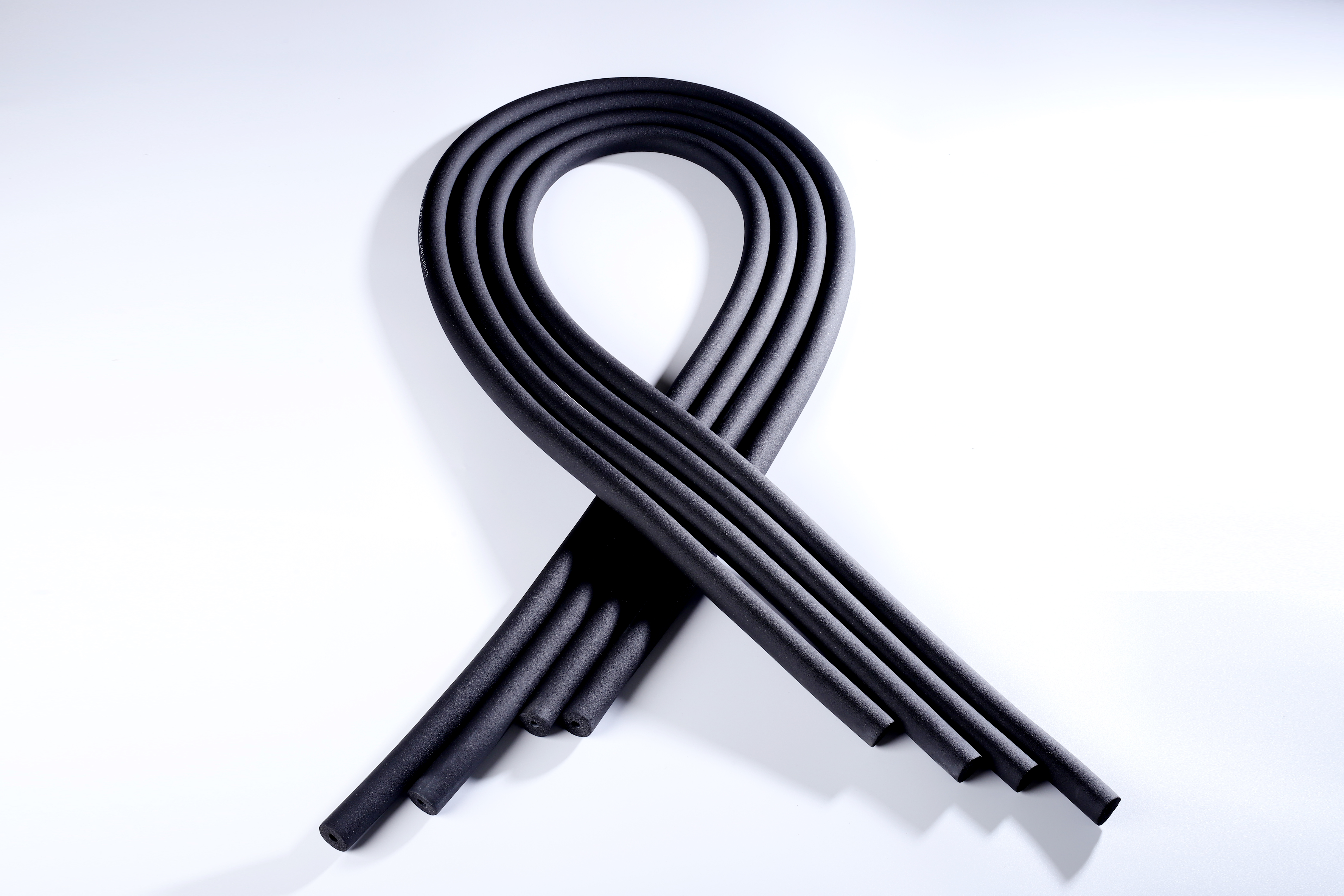

Kingflex is the fiber-free, flexible, elastomeric pipe insulation for reliable protection against condensation, mold, energy loss and ultraviolet radiation in residential and commercial applications. The closed-cell nature of elastomeric foam insulation provides superior protection against thermal losses, condensation and moisture accumulation that leads to mold. It is the ideal choice for insulating mechanical piping systems.

Product Description

Thermal Insulation Application

Growth in the construction industry and many other industrial segments, combined with concerns over rising energy costs and noise pollution, is fueling market demand for thermal insulation. With more than four decades of dedicated experience in manufacturing and applications, the insulation manufacturer is riding on the top of the wave.

Insulation Material Detail 1 Insulation Material Detail 2 Insulation Material Detail 3
  • Closed-cell structure provides excellent condensation and energy-loss control
  • Effectively retards degradation due to ultraviolet (UV) radiation
  • Flexible material with dusted, relaxed ID’s for easy installation
  • Superior toughness to withstand on-site handling
  • Built-in vapor barrier eliminates need for additional vapor retarder
  • Complete size range for HVAC/R

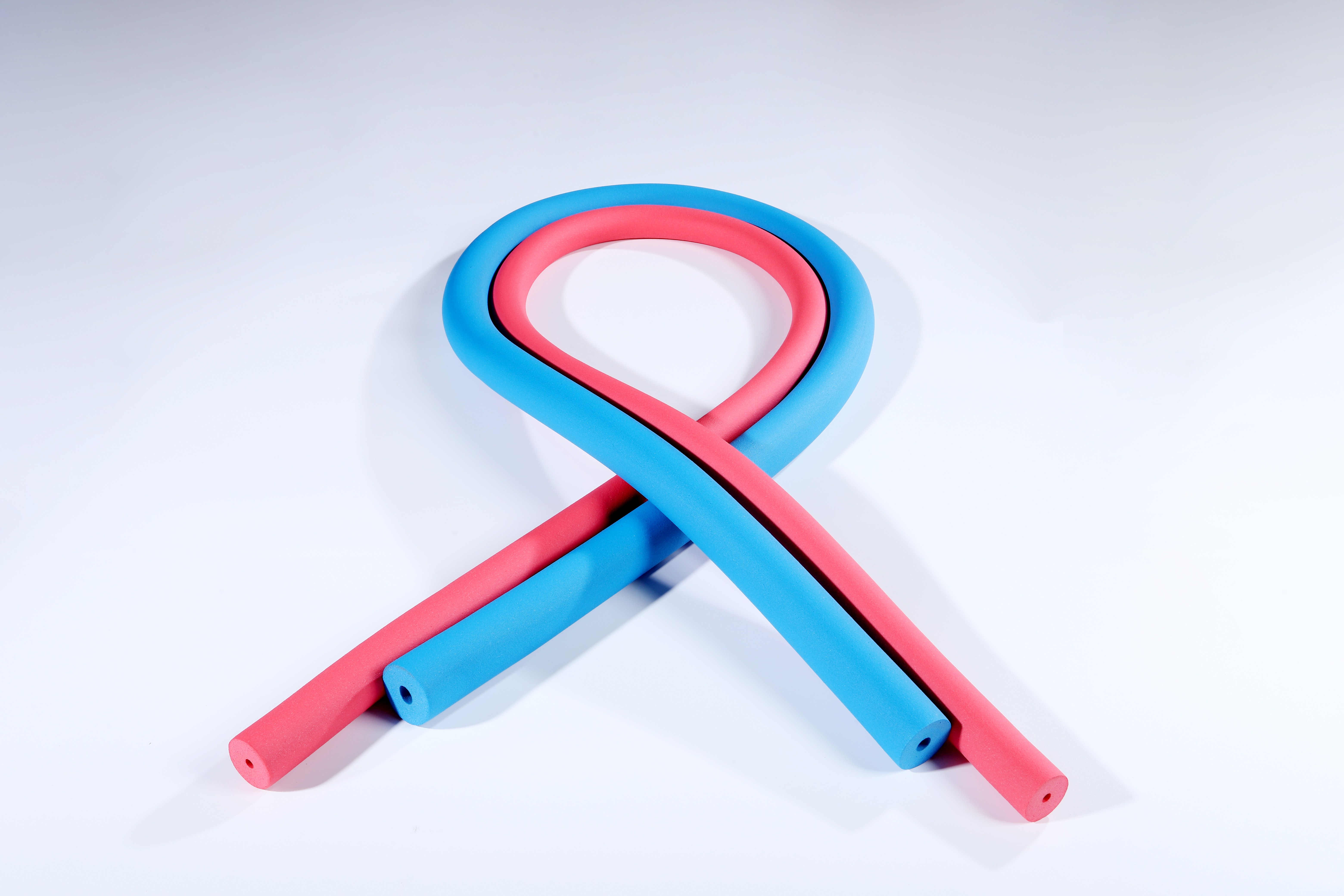

  • Distinguish between different pipelines
  • Distinguish between different pipelines

Nominal wall thicknesses of 1/4”, 3/8″, 1/2″, 3/4″, 1″, 1-1/4”, 1-1/2″ and 2” (6, 9, 13, 19, 25, 32, 40 and 50mm) Standard Length with 6ft (1.83m) or 6.2ft (2m).

Technical Data
Property Unit Value Test Method
Temperature range °C (-50 - 110) GB/T 17794-1999
Density range Kg/m³ 45-65Kg/m³ ASTM D1667
Water vapor permeability Kg/(m.s.pa) ≤0.91×10 ﹣¹³ DIN 52 615 / BS 4370 Part 2 1973
μ - ≥10000 -
Thermal Conductivity W/(m.k) ≤0.030 (-20°C) ASTM C 518
≤0.032 (0°C)
≤0.036 (40°C)
Fire Rating - Class 0 & Class 1 BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index - 25/50 ASTM E 84
Oxygen Index - ≥36 GB/T 2406, ISO4589
Water Absorption, % by Volume % 20% ASTM C 209
Dimension Stability - ≤5 ASTM C534
Fungi resistance - Good ASTM 21
Ozone resistance Good GB/T 7762-1987
Resistance to U.V. and weather Good ASTM G23

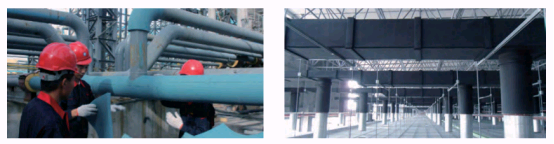

Insulation Application Performance

Rubber Foam Insulation could be used in schools, hospitals, government institutions and commercial spaces of all types value the long-term performance. Its moisture-resistant characteristics make it especially valuable on chilled-water and refrigeration piping where condensation might otherwise soak through fibrous types of insulations, significantly degrading their thermal performance, leaving them susceptible to fungal growth and ultimately shortening their life cycle. Moisture-resistant insulation, however, maintains its physical and thermal integrity -- for the life of the mechanical system!

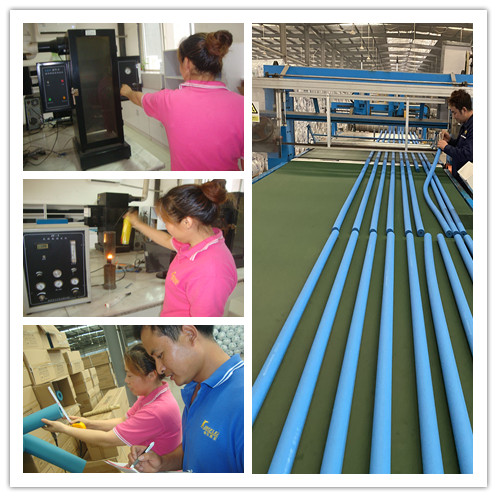

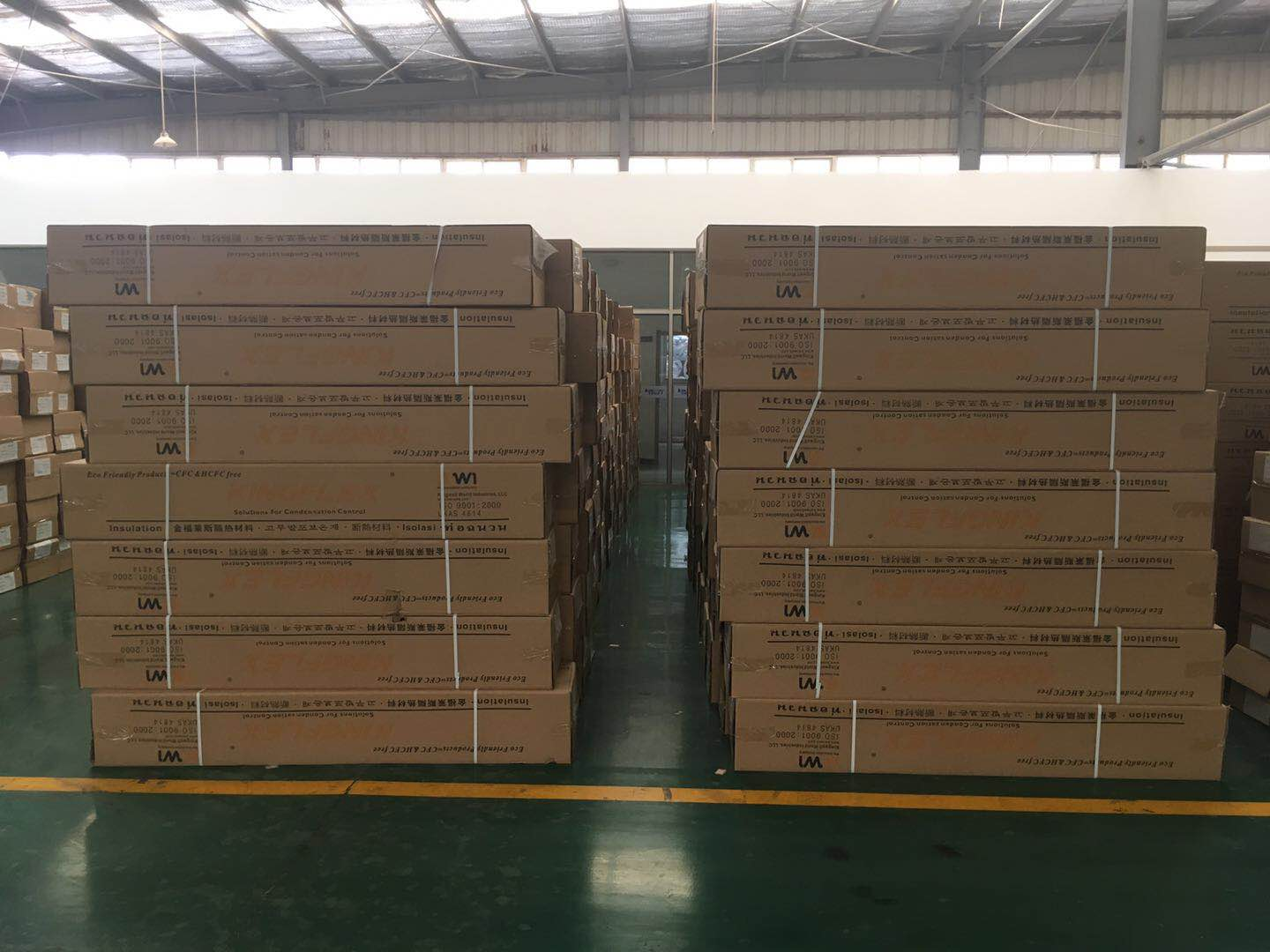

Thermal Insulation Stock Insulation Thickness Spec
Frequently Asked Questions
What are the primary benefits of using closed-cell structure insulation?
The closed-cell structure provides exceptional control over condensation and energy loss. It blocks moisture absorption, maintaining thermal efficiency and protecting pipes from corrosion.
Does this rubber foam insulation require an additional vapor retarder?
No, this material features a built-in vapor barrier, which eliminates the need for additional vapor retarder installation, saving time and labor costs.
How does the insulation perform under UV radiation?
It is designed to effectively retard degradation caused by ultraviolet (UV) radiation, making it durable for outdoor environments when properly installed.
What temperature ranges can this insulation withstand?
According to technical specifications, the insulation functions reliably in a temperature range from -50°C to 110°C (-58°F to 230°F).
What are the fire safety standards of this material?
This insulation achieves Class 0 & Class 1 fire ratings based on BS 476 Part 6 & 7 testing, with a flame spread and smoke developed index of 25/50 per ASTM E 84.
Where is rubber foam insulation typically used?
It is widely used on chilled-water, HVAC/R, and refrigeration piping in schools, hospitals, commercial properties, and government buildings where long-term thermal integrity is critical.
