Kingflex noise control system to minimise the risk of corrosion under insulation. Combined thermal and noise reduction in a single solution. Significant savings in installation and maintenance costs.
Product Characteristics & Benefits

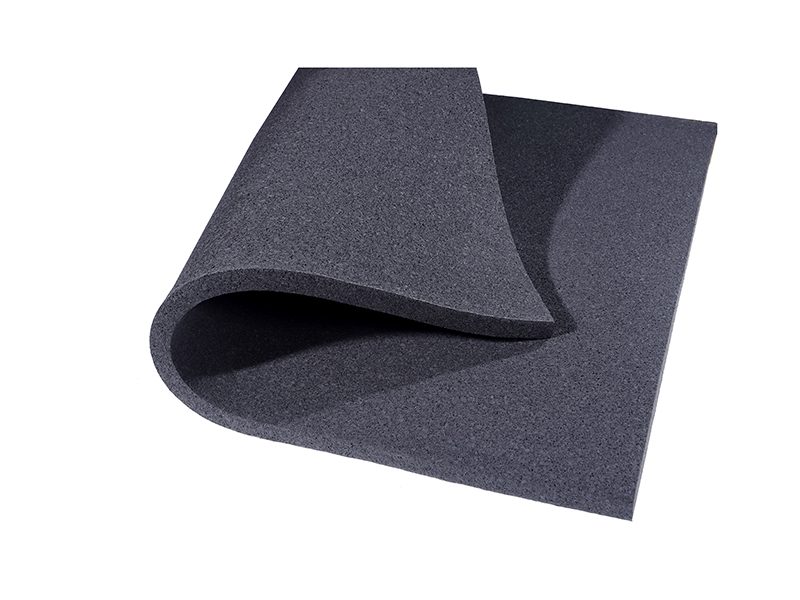

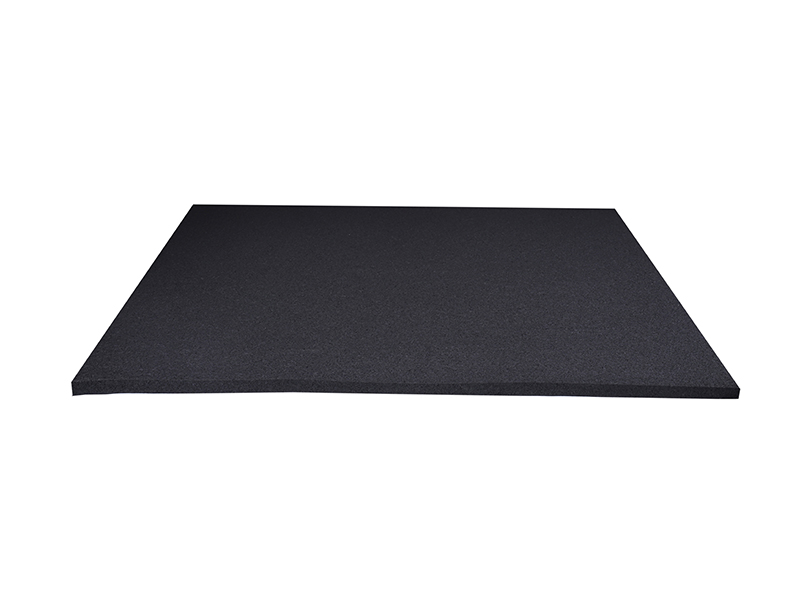

Kingflex flexible sound absorbing insulation sheet is a kind of universal sound absorbing material with open cell structure, designed for different acoustic application. Kingflex Acoustic Insulation For HVAC Ducts, Air Handling Systems, Plant Rooms And Architectural Acoustics.
-
✓
Excellent internal shock resistance with extensive absorption and dispersion of external stresses in local positions.
-
✓
Avoids material cracking due to stress concentration and hard foamed material cracking caused by impact.
-
✓
Reduces duct and plant room noise substantially.
-
✓
Quick and easy installation - no bitumen, tissue paper or perforated sheet required.
-
✓
Non-fibrous structure with no fibre migration and super silent performance.
-
✓

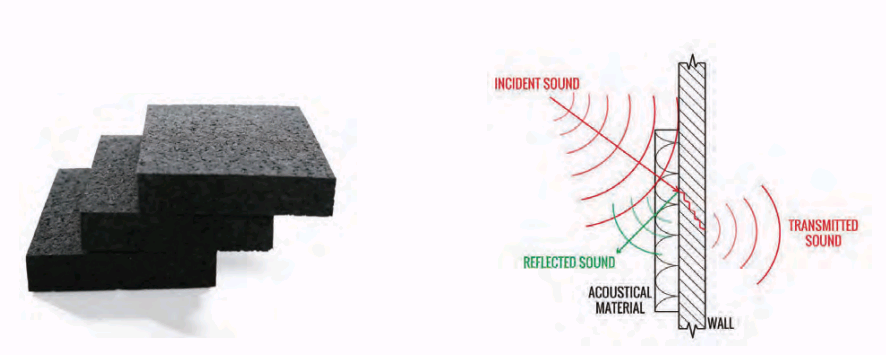

Extremely high noise absorption per unit thickness.
-
✓
Built-in Microban protection for long lifetime and microbe resistance.
-
✓
High density design to dampen duct rattling & vibration.
-
✓
Self-extinguishing properties, does not drip and does not spread flames.
Technical Specifications
| Technical Data of Sound Absorbing Insulation Sheet |
| Temperature Range |
-20℃ ~ +85℃ |
-20℃ ~ +85℃ |
- |
| Thermal Conductivity (Normal Atmospheric Temp.) |
0.047 W/(m.K) |
0.052 W/(m.K) |
EN ISO 12667 |
| Fire Resistance |
Class 1 |
Class 1 |
BS476 Part 7 |
| V0 |
V0 |
UL 94 |
| Fireproof, Self-Extinguishing, No Drop, No Flame Propagation |
Fireproof, Self-Extinguishing, No Drop, No Flame Propagation |
- |
| Density |
≥160 KG/M3 |
≥240 KG/M3 |
- |
| Tensile Strength |
60-90 kPa |
90-150 kPa |
ISO 1798 |
| Stretch Rate |
40-50% |
60-80% |
ISO 1798 |
| Chemical Tolerance |
Good |
Good |
- |
| Environmental Protection |
No Fiber Dust |
No Fiber Dust |
- |
Product Packing Specifications
| 1 |
6mm |
1m |
1m |
160KG/M3 |
8 |
PC/CTN |
1030mmx1030mmx55mm |
| 2 |
10mm |
1m |
1m |
160KG/M3 |
5 |
PC/CTN |
1030mmx1030mmx55mm |
| 3 |
15mm |
1m |
1m |
160KG/M3 |
4 |
PC/CTN |
1030mmx1030mmx65mm |
| 4 |
20mm |
1m |
1m |
160KG/M3 |
3 |
PC/CTN |
1030mmx1030mmx65mm |
| 5 |
25mm |
1m |
1m |
160KG/M3 |
2 |
PC/CTN |
1030mmx1030mmx55mm |
| 6 |
6mm |
1m |
1m |
240KG/M3 |
8 |
PC/CTN |
1030mmx1030mmx55mm |
| 7 |
10mm |
1m |
1m |
240KG/M3 |
5 |
PC/CTN |
1030mmx1030mmx55mm |
| 8 |
15mm |
1m |
1m |
240KG/M3 |
4 |
PC/CTN |
1030mmx1030mmx65mm |
| 9 |
20mm |
1m |
1m |
240KG/M3 |
3 |
PC/CTN |
1030mmx1030mmx65mm |
| 10 |
25mm |
1m |
1m |
240KG/M3 |
2 |
PC/CTN |
1030mmx1030mmx55mm |
Frequently Asked Questions
What are the primary benefits of the sound absorbing insulation sheet?
It provides combined thermal and noise reduction in a single solution, minimises the risk of corrosion under insulation, and reduces installation and maintenance costs.
Is the insulation material resistant to fire?
Yes, it features Class 1 and V0 fire resistance ratings (tested under BS476 Part 7 and UL 94 standards). It is self-extinguishing, does not drip, and does not propagate flames.
What densities are available for the insulation sheets?
The material is available in low density (≥160 KG/M3) and high density (≥240 KG/M3) options to suit different acoustic requirements.
Does this insulation release harmful fibers into the air?
No, the insulation sheet is completely fiber-free, meaning there is no fiber dust or migration, making it highly suitable for clean environments and air handling systems.
What is the temperature range application for this product?
Both low-density and high-density sheets have an applicable operational temperature range from -20℃ up to +85℃.
Where is this sound absorbing material typically used?

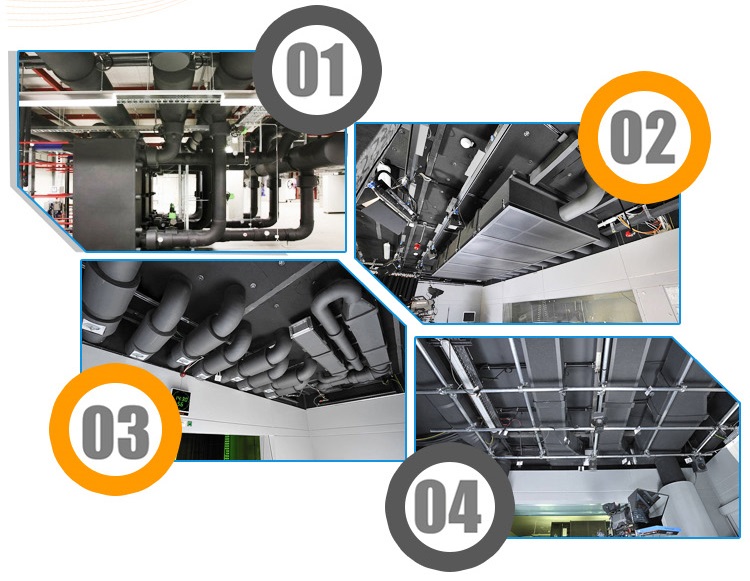

It is designed for HVAC ducts, air handling systems, plant rooms, and architectural acoustics to effectively dampen vibrations and reduce noise.
