Low thermal conductivity
✓
Closed-cell foam structure
✓
High elasticity: Highly elastic and flexible rubber tubing reduces the vibration and resonance of chilled and hot water piping during use
✓
Meet the most stringent requirement of fire retardant
✓
Long term temperature tolerance: (-50 degrees to 110 degrees C)
✓
Good elasticity, Good flexibility, long-term good sealing
✓
Long life: 10-30 years

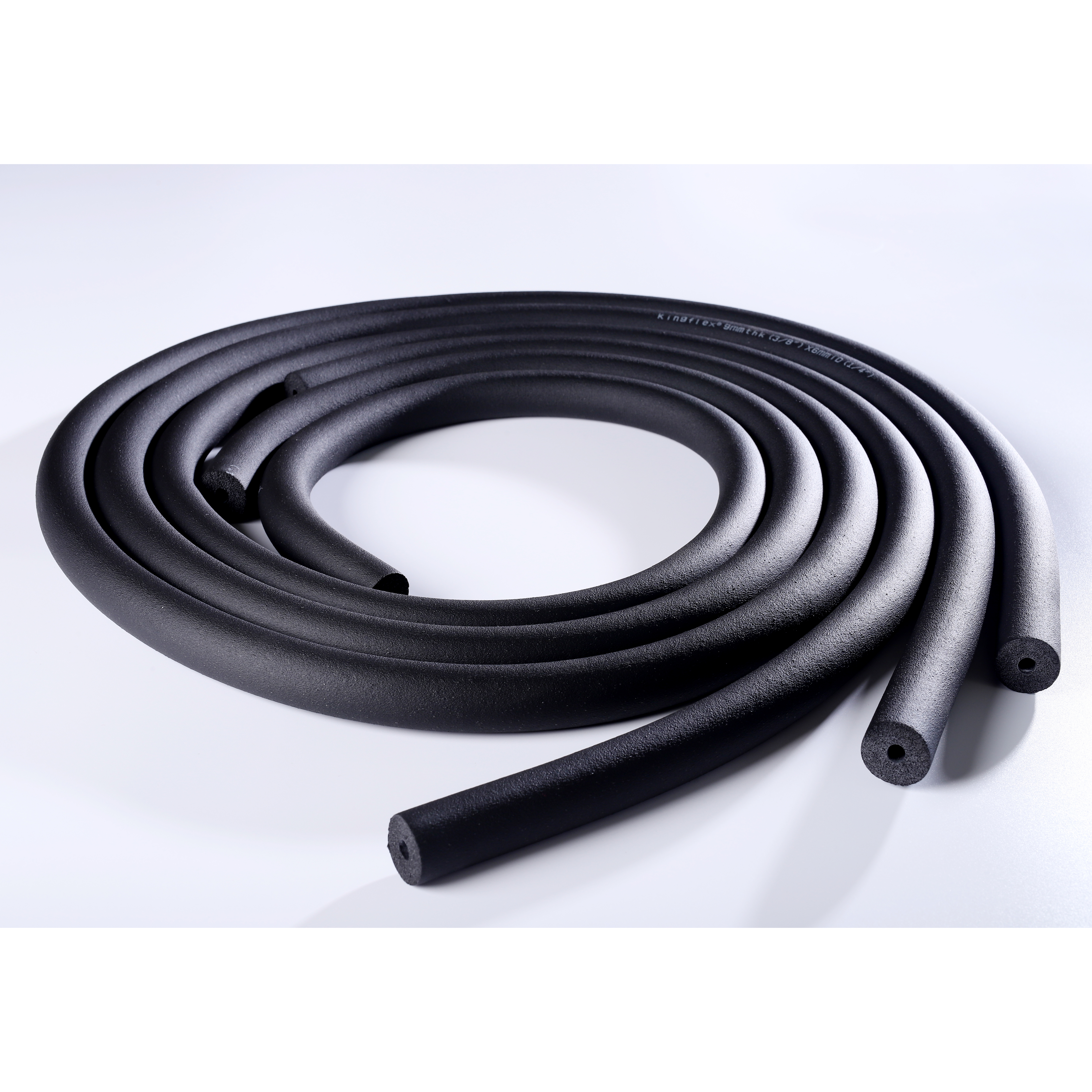

The insulation tube is generally black in color, other colors are available upon request. The product comes in tube, roll and sheet form. The extruded flexible tube are specially designed to fit the standard diameters of copper, steel and PVC piping. Sheets are available in standards precut sizes or in rolls.
The rubber foam material is available for different facing which are FSK Alu Foil, Adhesive Kraft, etc.
Technical Data Sheet
| Temperature range |
°C |
(-50 - 110) |
GB/T 17794-1999 |
| Density range |
Kg/m3 |
45-65Kg/m3 |
ASTM D1667 |
| Water vapor permeability |
Kg/(m.s.pa) |
≤0.91×10 ﹣¹³ |
DIN 52 615 / BS 4370 Part 2 1973 |
| μ |
- |
≥10000 |
- |
| Thermal Conductivity |
W/(m.k) |
≤0.030 (-20°C) |
ASTM C 518 |
| ≤0.032 (0°C) |
| ≤0.036 (40°C) |
| Fire Rating |
- |
Class 0 & Class 1 |
BS 476 Part 6 part 7 |
| Flame Spread and Smoke Developed Index |
- |
25/50 |
ASTM E 84 |
| Oxygen Index |
- |
≥36 |
GB/T 2406, ISO4589 |
| Water Absorption,%by Volume |
% |
20% |
ASTM C 209 |
| Dimension Stability |
- |
≤5 |
ASTM C534 |
| Fungi resistance |
- |
Good |
ASTM 21 |
| Ozone resistance |
Good |
GB/T 7762-1987 |
| Resistance to U.V. and weather |
Good |
ASTM G23 |
Frequently Asked Questions
?What are the main advantages of closed-cell foam insulation?
The closed-cell foam structure provides low thermal conductivity, high moisture resistance, and prevents condensation. It is highly elastic, helping to reduce vibration and noise in heating and cooling pipelines.
?What temperature range can this rubber insulation tolerate?
This insulation material exhibits excellent long-term temperature tolerance ranging from -50 degrees Celsius up to 110 degrees Celsius (-50°C to 110°C), making it suitable for hot and cold pipe applications.
?Does this insulation material meet fire safety standards?
Yes, it meets strict fire retardant requirements. It achieves Class 0 & Class 1 fire ratings according to BS 476 Part 6 & 7 and has a Flame Spread / Smoke Developed index of 25/50 under ASTM E 84.
?What forms and options are available for this insulation?
The insulation is available as flexible tubes, sheets, and rolls. Custom facings like FSK Aluminium Foil and self-adhesive Kraft paper backing are also available to meet different installation requirements.
?What is the expected lifespan of the rubber foam insulation?
Due to its excellent resistance to ozone, UV, weathering, and fungi, the material provides long-term sealing performance and has a designed service life of 10 to 30 years under normal conditions.
