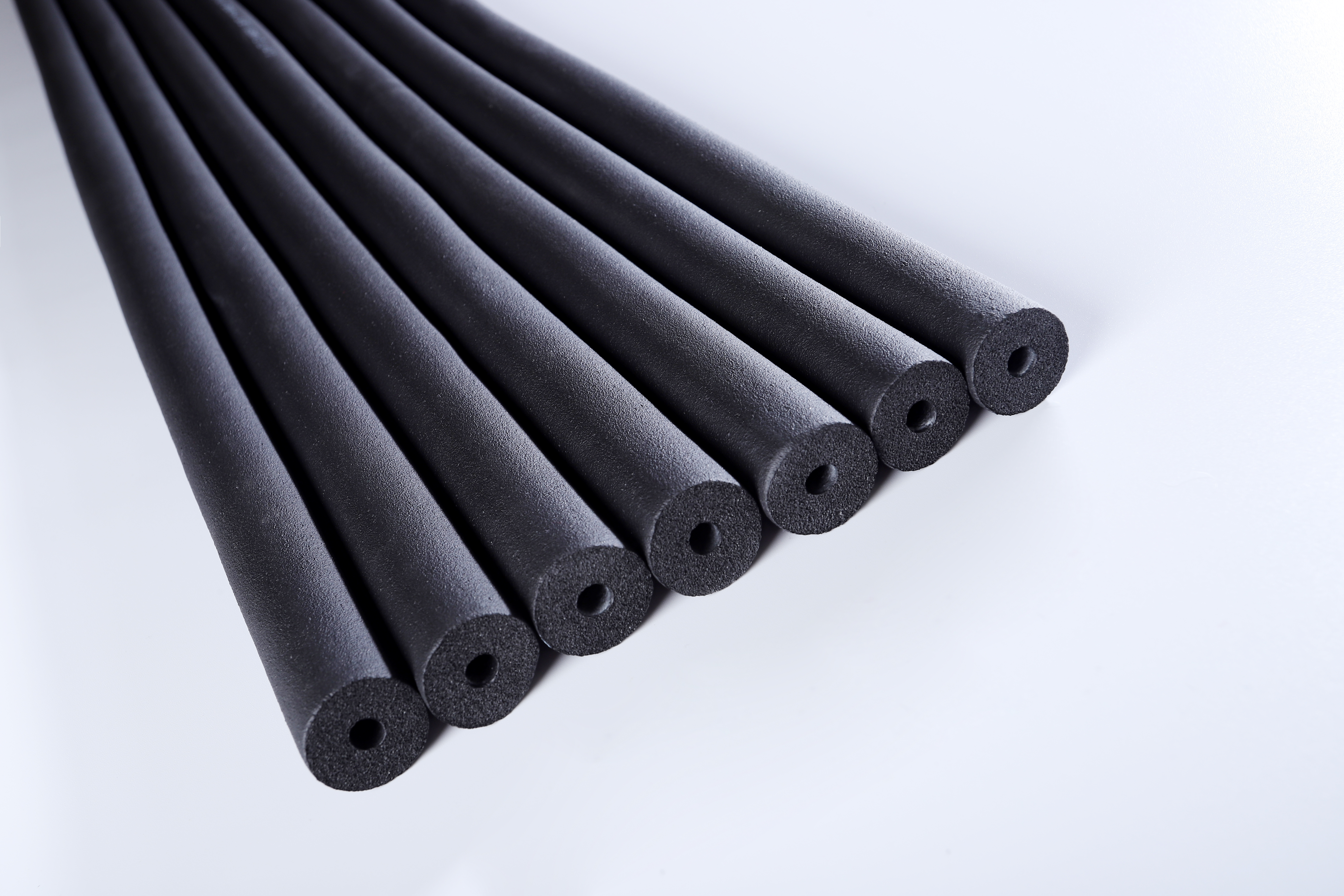

Found in commercial, industrial, residential, and public buildings, this insulation effectively helps to control condensation, protect against frost, and reduce energy loss.
| Technical Data Specification | |||
|---|---|---|---|
| Property | Unit | Value | Test Method |
| Temperature range | °C | (-50 - 110) | GB/T 17794-1999 |
| Density range | Kg/m³ | 45-65Kg/m³ | ASTM D1667 |
| Water vapor permeability | Kg/(m.s.pa) | ≤0.91×10 ﹣¹³ | DIN 52 615 / BS 4370 Part 2 1973 |
| μ | - | ≥10000 | - |
| Thermal Conductivity | W/(m.k) | ≤0.030 (-20°C) | ASTM C 518 |
| ≤0.032 (0°C) | |||
| ≤0.036 (40°C) | |||
| Fire Rating | - | Class 0 & Class 1 | BS 476 Part 6 & Part 7 |
| Flame Spread and Smoke Developed Index | - | 25/50 | ASTM E 84 |
| Oxygen Index | - | ≥36 | GB/T 2406, ISO4589 |
| Water Absorption, % by Volume | % | 20% | ASTM C 209 |
| Dimension Stability | - | ≤5 | ASTM C534 |
| Fungi resistance | - | Good | ASTM 21 |
| Ozone resistance | - | Good | GB/T 7762-1987 |
| Resistance to U.V. and weather | - | Good | ASTM G23 |
It provides reliable condensation control, protects pipes against frost, prevents thermal and energy loss, and features built-in antimicrobial protection to prevent mold and bacteria growth.
The insulation material meets Class 0 and Class 1 fire classifications according to BS 476 Part 6 and Part 7 standards. It also achieves a 25/50 Flame Spread and Smoke Developed Index under ASTM E 84 testing.
This material is highly stable and suitable for operating temperature ranges between -50°C and 110°C, tested in compliance with GB/T 17794-1999.
It is widely used in commercial, industrial, residential, and public buildings. Main applications include chilled water pipes, condense pipes, air ducts, central air-conditioning systems, and all types of hot/cold medium piping.
No, the material is certified for low chemical emissions. It is completely free of dust, fiber, and formaldehyde, ensuring safety for installers and building occupants.
It shows excellent performance and durability, rating "Good" in fungi resistance (ASTM 21), ozone resistance (GB/T 7762-1987), and resistance to UV and weathering (ASTM G23).
