Low conductivity factor
✓
Good fire-blocking
✓
Closed pore foaming, good damp-proof property
✓
Good pliability
✓
Beautiful appearance, easy to install
✓
Safe (neither stimulate the skin nor harm health), Excellent performance of acid-resisting and alkali-resisting.

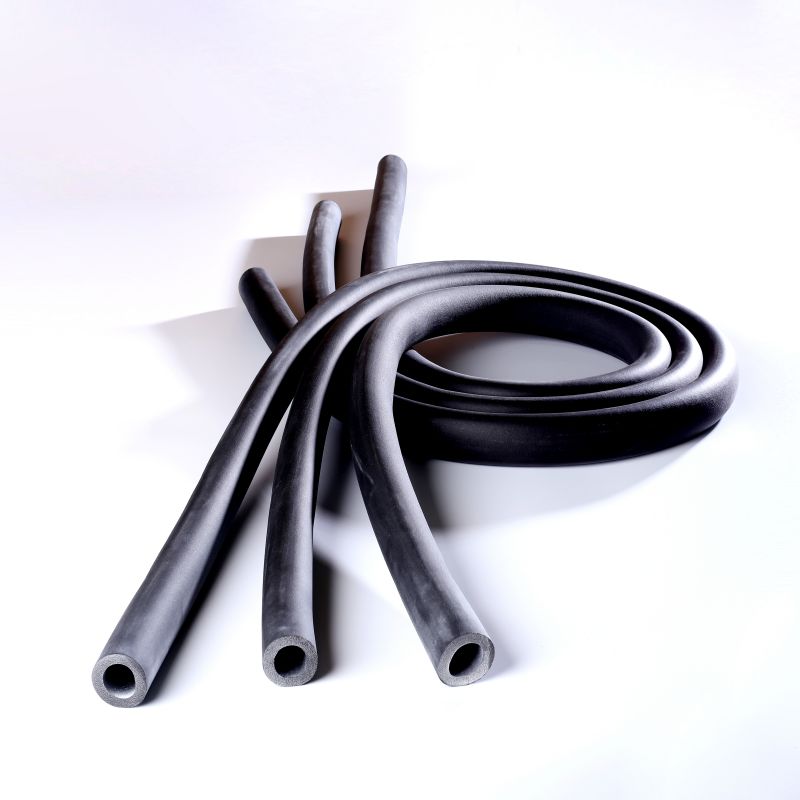

The rubber foam products are produced by imported high-end technology and automatic continuous equipment. Through in-depth research, a rubber foam insulation material with excellent performance has been successfully developed. The major materials used are NBR/PVC.
| Technical Data |
| Property |
Unit |
Value |
Test Method |
| Temperature range |
°C |
(-50 - 110) |
GB/T 17794-1999 |
| Density range |
Kg/m³ |
45-65Kg/m³ |
ASTM D1667 |
| Water vapor permeability |
Kg/(m.s.pa) |
≤0.91×10 ﹣¹³ |
DIN 52 615 / BS 4370 Part 2 1973 |
| μ |
- |
≥10000 |
- |
| Thermal Conductivity |
W/(m.k) |
≤0.030 (-20°C) |
ASTM C 518 |
| ≤0.032 (0°C) |
| ≤0.036 (40°C) |
| Fire Rating |
- |
Class 0 & Class 1 |
BS 476 Part 6 part 7 |
| Flame Spread and Smoke Developed Index |
- |
25/50 |
ASTM E 84 |
| Oxygen Index |
- |
≥36 |
GB/T 2406, ISO4589 |
| Water Absorption, % by Volume |
% |
20% |
ASTM C 209 |
| Dimension Stability |
- |
≤5 |
ASTM C534 |
| Fungi resistance |
- |
Good |
ASTM 21 |
| Ozone resistance |
Good |
GB/T 7762-1987 |
| Resistance to U.V. and weather |
Good |
ASTM G23 |
Frequently Asked Questions
What are the primary materials used in this rubber foam insulation?
The major raw materials used in the production process are premium NBR (Nitrile Butadiene Rubber) and PVC (Polyvinyl Chloride).
What is the thermal conductivity of this insulation material?
The material features an exceptionally low thermal conductivity: ≤0.030 W/(m.k) at -20°C, ≤0.032 W/(m.k) at 0°C, and ≤0.036 W/(m.k) at 40°C, complying with ASTM C 518 standard.
How does this product perform in terms of fire resistance?
It meets Class 0 and Class 1 fire ratings according to BS 476 Part 6 & 7, with a high oxygen index of ≥36 (GB/T 2406, ISO4589) and a flame/smoke index of 25/50 (ASTM E 84).
What is the applicable temperature range for this insulation?
This rubber foam insulation is designed to operate effectively within a temperature range of -50°C to 110°C, tested under the GB/T 17794-1999 standard.
How does the material prevent moisture penetration?
Due to its closed-cell foaming structure, the material has low water vapor permeability (≤0.91×10 ﹣¹³ Kg/(m.s.pa)) and high water vapor resistance factor (μ ≥10000), offering outstanding damp-proof performance.
Is this product safe for installation and environment resistant?
Yes. It is completely safe as it does not stimulate the skin or harm health. Additionally, it offers excellent resistance against fungi, ozone, ultraviolet (U.V.) rays, and outdoor weathering.
