Kingflex
1 / 3
| Thickness | Width 1m | Width 1.2m | Width 1.5m | ||||
|---|---|---|---|---|---|---|---|
| Inches | mm | Size(L*W) | ㎡/Roll | Size(L*W) | ㎡/Roll | Size(L*W) | ㎡/Roll |
| 1/4" | 6 | 30 × 1 | 30 | 30 × 1.2 | 36 | 30 × 1.5 | 45 |
| 3/8" | 10 | 20 × 1 | 20 | 20 × 1.2 | 24 | 20 × 1.5 | 30 |
| 1/2" | 13 | 15 × 1 | 15 | 15 × 1.2 | 18 | 15 × 1.5 | 22.5 |
| 3/4" | 19 | 10 × 1 | 10 | 10 × 1.2 | 12 | 10 × 1.5 | 15 |
| 1" | 25 | 8 × 1 | 8 | 8 × 1.2 | 9.6 | 8 × 1.5 | 12 |
| 1 1/4" | 32 | 6 × 1 | 6 | 6 × 1.2 | 7.2 | 6 × 1.5 | 9 |
| 1 1/2" | 40 | 5 × 1 | 5 | 5 × 1.2 | 6 | 5 × 1.5 | 7.5 |
| 2" | 50 | 4 × 1 | 4 | 4 × 1.2 | 4.8 | 4 × 1.5 | 6 |
| Property | Unit | Value | Test Method |
|---|---|---|---|
| Temperature range | °C | (-50 - 110) | GB/T 17794-1999 |
| Density range | Kg/m³ | 45-65Kg/m³ | ASTM D1667 |
| Water vapor permeability | Kg/(m.s.pa) | ≤0.91×10 ﹣¹³ | DIN 52 615 / BS 4370 Part 2 1973 |
| μ | - | ≥10000 | - |
| Thermal Conductivity | W/(m.k) | ≤0.030 (-20°C) | ASTM C 518 |
| ≤0.032 (0°C) | - | ||
| ≤0.036 (40°C) | - | ||
| Fire Rating | - | Class 0 & Class 1 | BS 476 Part 6 part 7 |
| Flame Spread and Smoke Developed Index | - | 25/50 | ASTM E 84 |
| Oxygen Index | - | ≥36 | GB/T 2406, ISO4589 |
| Water Absorption, % by Volume | % | 20% | ASTM C 209 |
| Dimension Stability | - | ≤5 | ASTM C534 |
| Fungi resistance | - | Good | ASTM 21 |
| Ozone resistance | - | Good | GB/T 7762-1987 |
| Resistance to U.V. and weather | - | Good | ASTM G23 |
As a leading manufacturer nowadays we supply more than half of the region's requirements for rubber insulation products, and trade in the complete range of insulation products.

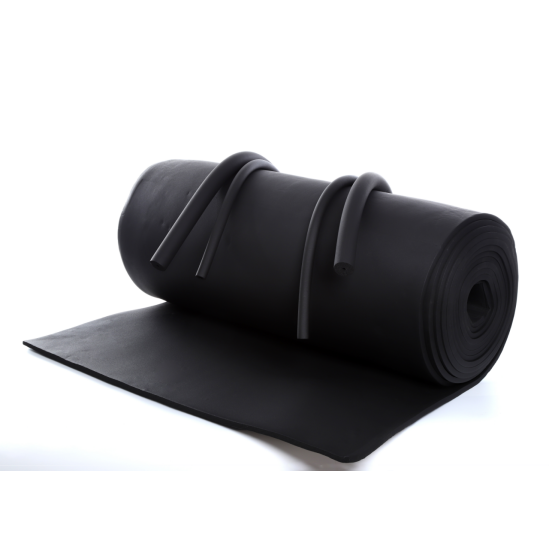

Kingflex insulation rolls are available in thicknesses ranging from 1/4" (6mm) up to 2" (50mm). Standard widths are 1m, 1.2m, and 1.5m, with varying lengths to accommodate different coverage requirements.
Our insulation is designed to operate safely and effectively within a temperature range of -50°C to 110°C, according to the GB/T 17794-1999 test standard.
Kingflex rubber insulation achieved a Class 0 & Class 1 fire rating according to BS 476 Part 6 & 7 standards. It also meets the ASTM E 84 standard with a Flame Spread and Smoke Developed Index of 25/50.
Yes, Kingflex insulation features a very high water vapor permeability resistance (μ ≥ 10000) and has a water absorption rate of only 20% by volume under the ASTM C 209 test method.
Yes, technical tests (ASTM G23 and GB/T 7762-1987) indicate good resistance to both ozone exposure and weathering from UV light, making it durable for long-term usage.
