| Technical Data | |||
|---|---|---|---|
| Property | Unit | Value | Test Method |
| Temperature range | °C | (-50 - 110) | GB/T 17794-1999 |
| Density range | Kg/m³ | 45-65Kg/m³ | ASTM D1667 |
| Water vapor permeability | Kg/(m.s.pa) | ≤0.91×10−13 | DIN 52 615 / BS 4370 Part 2 1973 |
| μ | - | ≥10000 | - |
| Thermal Conductivity | W/(m.k) | ≤0.030 (-20°C) | ASTM C 518 |
| ≤0.032 (0°C) | |||
| ≤0.036 (40°C) | |||
| Fire Rating | - | Class 0 & Class 1 | BS 476 Part 6 part 7 |
| Flame Spread and Smoke Developed Index | - | 25/50 | ASTM E 84 |
| Oxygen Index | - | ≥36 | GB/T 2406, ISO 4589 |
| Water Absorption, % by Volume | % | 20% | ASTM C 209 |
| Dimension Stability | - | ≤5 | ASTM C534 |
| Fungi resistance | - | Good | ASTM 21 |
| Ozone resistance | Good | GB/T 7762-1987 | |
| Resistance to U.V. and weather | Good | ASTM G23 | |
1. Excellent Fire Performance
Our rubber foam insulation is approved by BS476. You can choose Class 0 or Class 1 according to your requirements. It features self-extinguishing properties and produces no drips according to ASTM D635-91.
2. Low Thermal Conductivity
Our rubber foam is your smart choice for energy saving, featuring a low thermal conductivity of ≤0.034 W/m.K.
3. Eco-friendly
Contains no dust and fiber, is completely CFC-free, has low VOCs, and exhibits no fungal or negligible bacterial growth.
4. Easy to Install
Due to the rubber foam's highly flexible performance, it is easy to bend around irregular pipes and cut into different shapes and sizes, significantly saving labor and materials.
5. Custom Colors

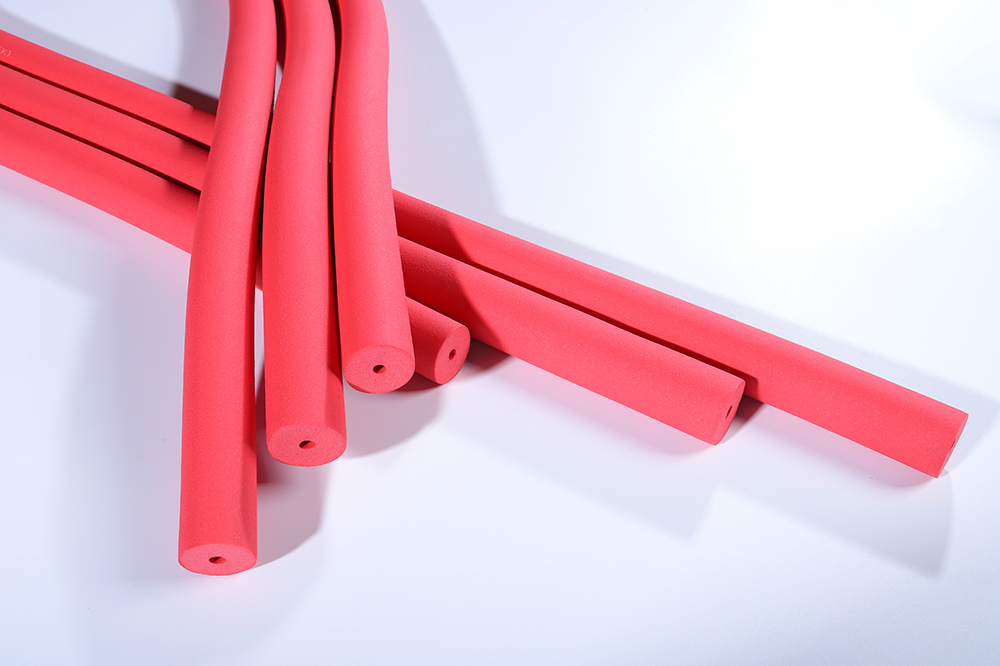

We can customize various colors such as red, blue, green, grey, yellow, and more. Your finished piping lines will look much cleaner, and it is easy to distinguish different pipes for maintenance purposes.
