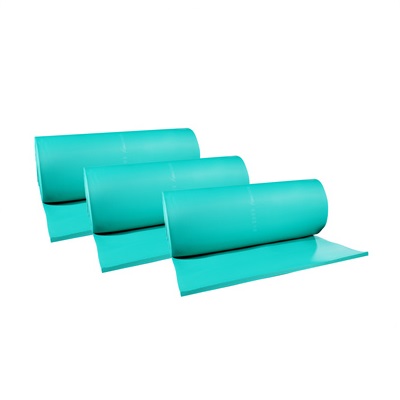

Wholesale Kingflex green corlor rubber foam insulation sheet roll Manufacturer, Factories

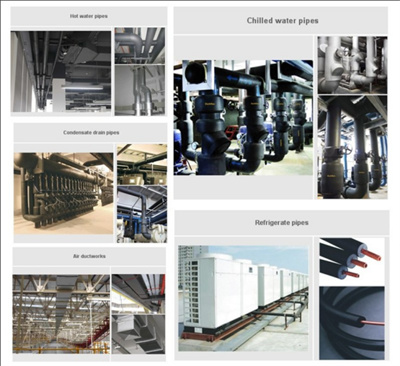

Kingflex green corlor rubber foam insulation sheet roll is made of nitrile-butadiene rubber (NBR) and polyvinyl chloride(PVC) as main raw material and other high quality auxiliary materials through foaming, which is closed cell elastermic material, fire resistance, UV-anti and environmental friendly. It can be widely used for air condition, construction, chemical industry, medicine, light industry and so on. More pleasant to look at than traditional black color.
  • l Kingflex green corlor rubber foam insulation sheet roll is supplied in flat sheets and packed in sheets with width 40” (1m), in nominal thicknesses of 1/8″, 1/4″, 3/8″, 1/2″, 5/8”, 3/4″, 1″, 1-1/4”, 1-1/2″, and 2″ (3, 6, 9, 13, 16, 19, 25, 32, 40, and 50mm).
  • l Kingflex green corlor rubber foam insulation sheet roll is supplied in 40” to 59″ wide (1m to 1.5m) continuous rolls in nominal wall thicknesses of 1/8″, 1/4″, 3/8″, 1/2″, 5/8”, 3/4″, 1″, 1-1/4”, 1-1/2″, and 2″ (3, 6, 9, 13, 16, 19, 25, 32, 40, and 50mm ).

Product Description

Product Dimensions
Kingflex Dimension
Thickness Width 1m Width 1.2m Width 1.5m
Inches mm Size(L*W) ㎡/Roll Size(L*W) ㎡/Roll Size(L*W) ㎡/Roll
1/4" 6 30 × 1 30 30 × 1.2 36 30 × 1.5 45
3/8" 10 20 × 1 20 20 × 1.2 24 20 × 1.5 30
1/2" 13 15 × 1 15 15 × 1.2 18 15 × 1.5 22.5
3/4" 19 10 × 1 10 10 × 1.2 12 10 × 1.5 15
1" 25 8 × 1 8 8 × 1.2 9.6 8 × 1.5 12
1 1/4" 32 6 × 1 6 6 × 1.2 7.2 6 × 1.5 9
1 1/2" 40 5 × 1 5 5 × 1.2 6 5 × 1.5 7.5
2" 50 4 × 1 4 4 × 1.2 4.8 4 × 1.5 6
Technical Specifications
Kingflex Technical Data
Property Unit Value Test Method
Temperature range °C (-50 - 110) GB/T 17794-1999
Density range Kg/m3 45-65Kg/m3 ASTM D1667
Water vapor permeability Kg/(m.s.pa) ≤0.91×10 ﹣¹³ DIN 52 615 / BS 4370 Part 2 1973
μ - ≥10000 -
Thermal Conductivity W/(m.k) ≤0.030 (-20°C) ASTM C 518
≤0.032 (0°C)
≤0.036 (40°C)
Fire Rating - Class 0 & Class 1 BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index - 25/50 ASTM E 84
Oxygen Index - ≥36 GB/T 2406,ISO4589
Water Absorption,%by Volume % 20% ASTM C 209
Dimension Stability - ≤5 ASTM C534
Fungi resistance - Good ASTM 21
Ozone resistance Good GB/T 7762-1987
Resistance to U.V. and weather Good ASTM G23
Frequently Asked Questions
What is the standard thickness range of the insulation materials?
The standard thickness ranges from 1/4" (6mm) up to 2" (50mm), providing varied insulation levels suitable for different requirements.
What are the available width options for the rolls?
The insulation sheets are available in three standard widths: 1m, 1.2m, and 1.5m, with total roll sizes adapted to optimize installation areas.
What is the thermal conductivity rating of the material?
The thermal conductivity is rated at ≤0.030 W/(m.k) at -20°C, ≤0.032 W/(m.k) at 0°C, and ≤0.036 W/(m.k) at 40°C, following ASTM C 518 standards.
Does the insulation material offer good fire performance?
Yes, it achieves a Class 0 & Class 1 fire rating according to BS 476 Part 6 & 7 tests, and conforms to ASTM E 84 with a flame spread and smoke developed index of 25/50.
Is the insulation material resistant to environmental factors like ozone and UV?
Yes, technical tests (ASTM G23 & GB/T 7762-1987) show that the material has good resistance to ozone, UV exposure, weathering, and fungi growth.
