Closed cell foam with a high closed cell ratio significantly improves the water vapor isolation ability. It is highly resistant to condensation and offers excellent moisture resistance to ensure the long-term insulation effect.

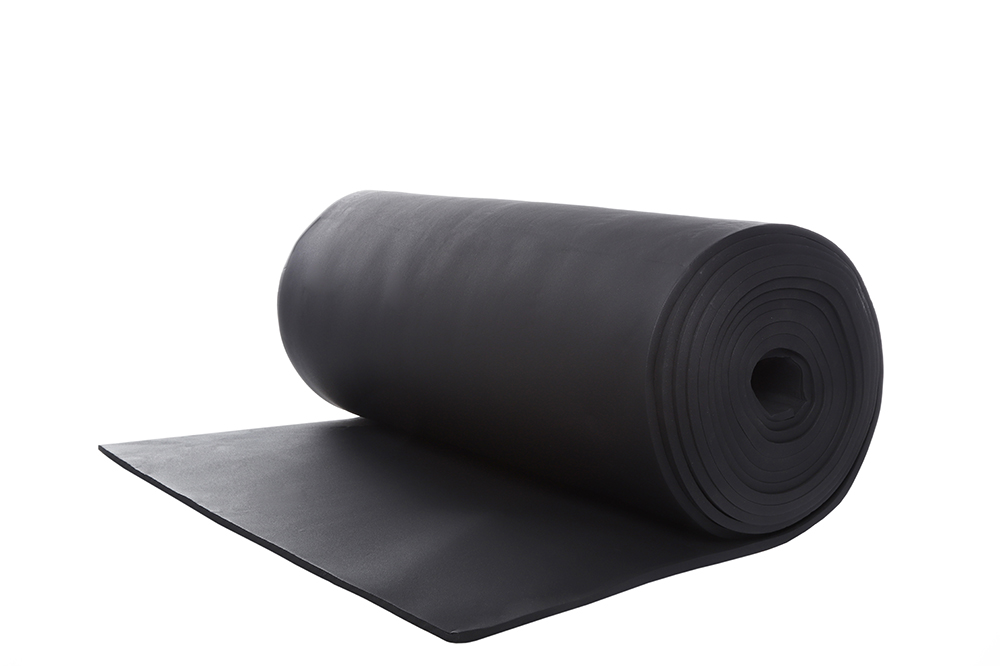

Nitrile rubber foam insulation material adopts an advanced closed cell foam process. This structure gives it unique water vapor resistance, low thermal conductivity, and sound insulation & shock absorption properties. It is widely applicable to water pipes and ducts in HVAC systems, refrigeration and heating equipment, hot water piping, and process pipelines for cold insulation, ensuring the tightness of the entire system.
| Thickness | Width 1m | Width 1.2m | Width 1.5m | ||||
|---|---|---|---|---|---|---|---|
| Inches | mm | Size (L*W) | ㎡/Roll | Size (L*W) | ㎡/Roll | Size (L*W) | ㎡/Roll |
| 1/4" | 6 | 30 × 1 | 30 | 30 × 1.2 | 36 | 30 × 1.5 | 45 |
| 3/8" | 10 | 20 × 1 | 20 | 20 × 1.2 | 24 | 20 × 1.5 | 30 |
| 1/2" | 13 | 15 × 1 | 15 | 15 × 1.2 | 18 | 15 × 1.5 | 22.5 |
| 3/4" | 19 | 10 × 1 | 10 | 10 × 1.2 | 12 | 10 × 1.5 | 15 |
| 1" | 25 | 8 × 1 | 8 | 8 × 1.2 | 9.6 | 8 × 1.5 | 12 |
| 1 1/4" | 32 | 6 × 1 | 6 | 6 × 1.2 | 7.2 | 6 × 1.5 | 9 |
| 1 1/2" | 40 | 5 × 1 | 5 | 5 × 1.2 | 6 | 5 × 1.5 | 7.5 |
| 2" | 50 | 4 × 1 | 4 | 4 × 1.2 | 4.8 | 4 × 1.5 | 6 |
| Property | Unit | Value | Test Method |
|---|---|---|---|
| Temperature range | °C | (-50 - 110) | GB/T 17794-1999 |
| Density range | Kg/m3 | 45-65Kg/m3 | ASTM D1667 |
| Water vapor permeability | Kg/(m.s.pa) | ≤0.91×10 ﹣¹³ | DIN 52 615 / BS 4370 Part 2 1973 |
| μ | - | ≥10000 | - |
| Thermal Conductivity | W/(m.k) | ≤0.030 (-20°C) | ASTM C 518 |
| ≤0.032 (0°C) | |||
| ≤0.036 (40°C) | |||
| Fire Rating | - | Class 0 & Class 1 | BS 476 Part 6 part 7 |
| Flame Spread and Smoke Developed Index | - | 25/50 | ASTM E 84 |
| Oxygen Index | - | ≥36 | GB/T 2406, ISO4589 |
| Water Absorption, % by Volume | % | 20% | ASTM C 209 |
| Dimension Stability | - | ≤5 | ASTM C534 |
| Fungi resistance | - | Good | ASTM 21 |
| Ozone resistance | Good | GB/T 7762-1987 | |
| Resistance to U.V. and weather | Good | ASTM G23 |
The closed cell structure features a high closed cell ratio, which drastically reduces water vapor transmission. This prevents moisture ingress, minimizes condensation risks, and ensures long-lasting thermal insulation efficiency.
The material exhibits excellent thermal insulation performance, with a thermal conductivity of ≤0.030 W/(m.k) at -20°C, ≤0.032 W/(m.k) at 0°C, and ≤0.036 W/(m.k) at 40°C, as tested per ASTM C 518.

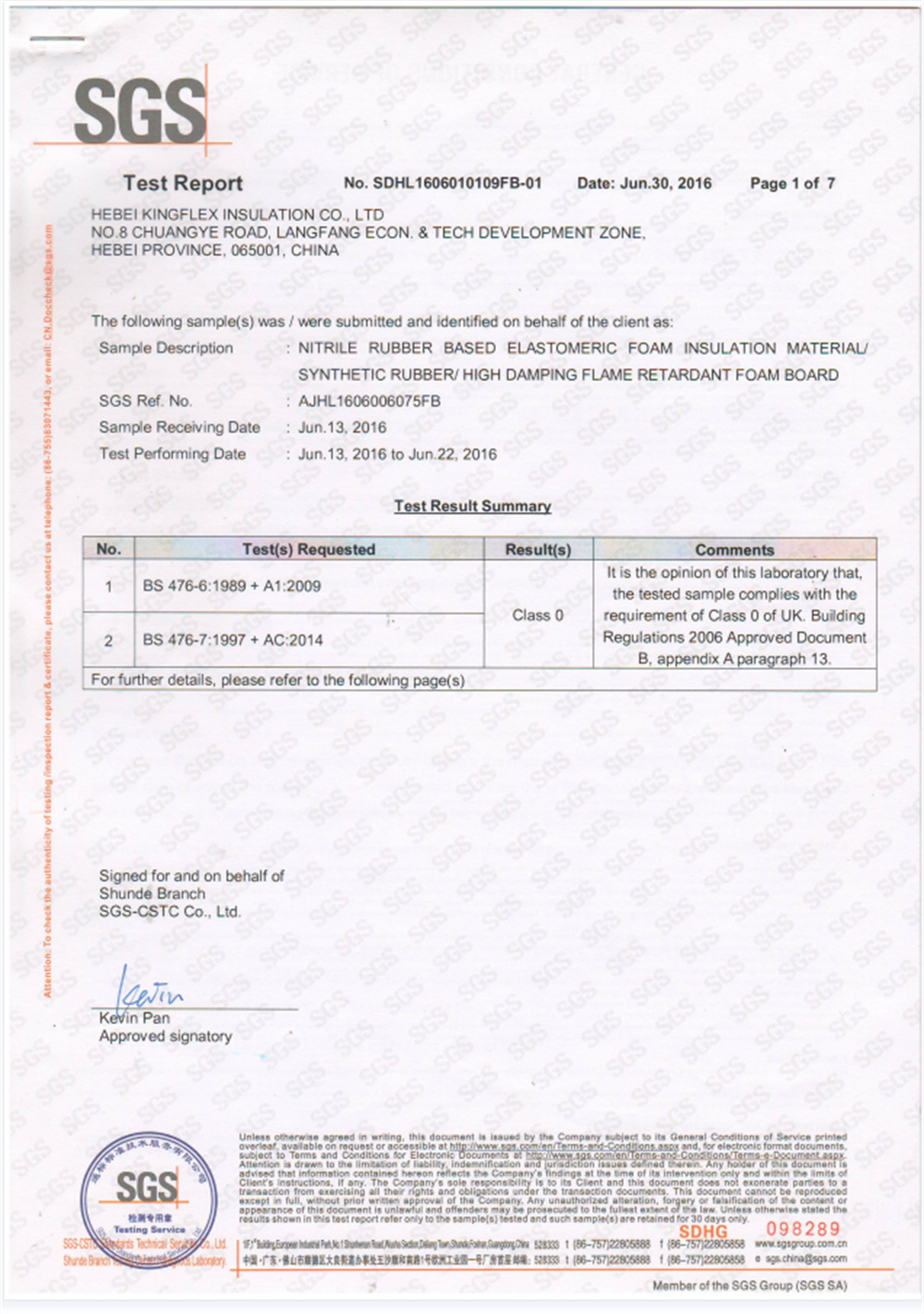

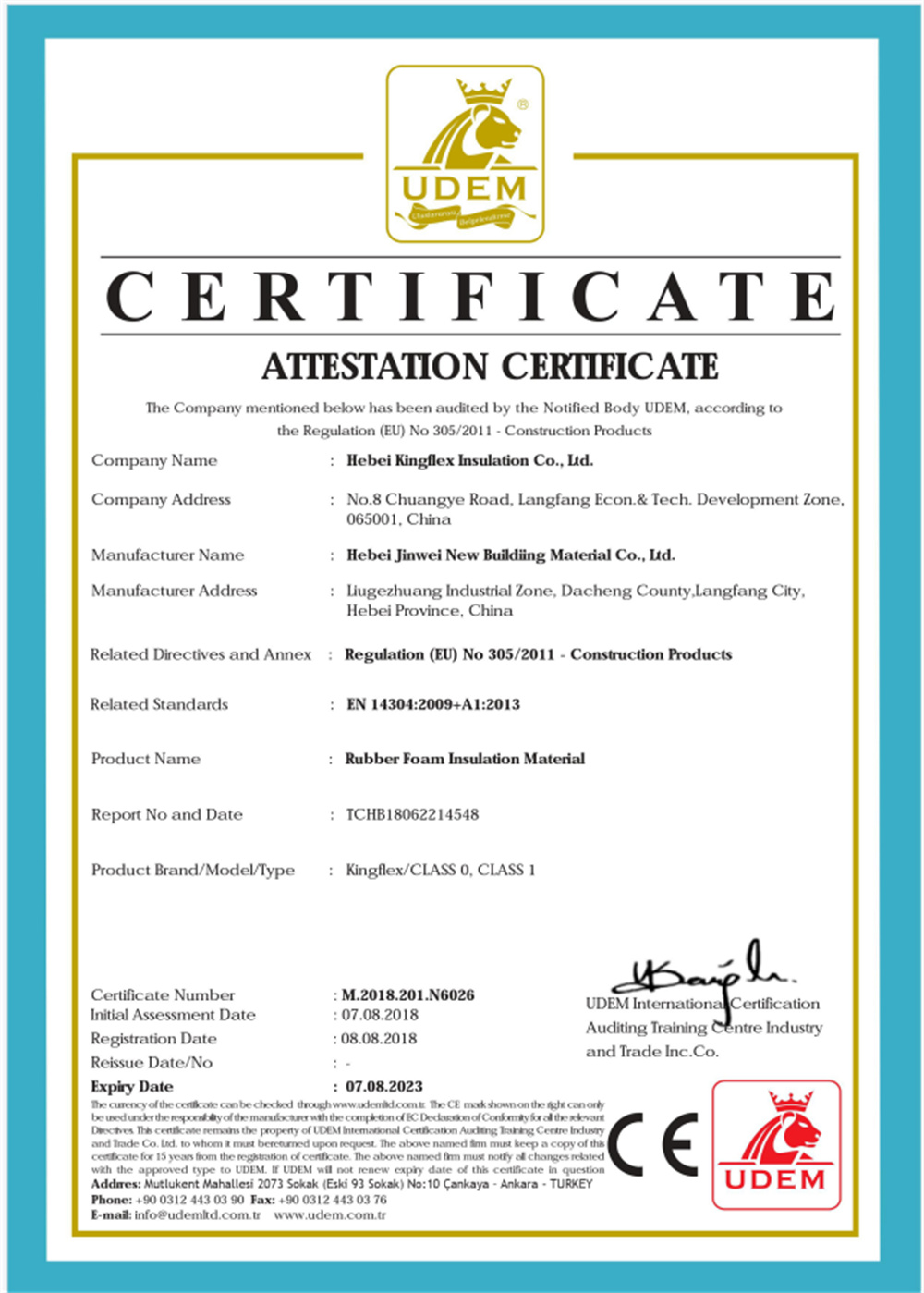

Yes, it achieves Class 0 & Class 1 fire ratings according to BS 476 Part 6 and 7 standards. It also meets the ASTM E 84 standard with a Flame Spread and Smoke Developed Index of 25/50.
According to the GB/T 17794-1999 test standard, the material is designed to operate safely within a temperature range of -50°C to 110°C.
The nitrile rubber insulation displays good resistance to fungi (ASTM 21), ozone (GB/T 7762-1987), and UV/weathering (ASTM G23), making it highly durable for various industrial environments.
