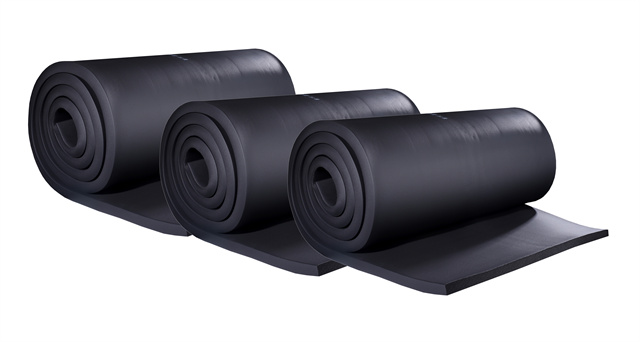

For condensation prevention and energy loss limitation where pipes and ducts, chillers and air conditioning equipment are required.
Efficiently reduces heat flow on hot systems, duct work, large piping, tanks and fittings.
| Dimension Table | |||||||
|---|---|---|---|---|---|---|---|
| Thickness | Width 1m | Width 1.2m | Width 1.5m | ||||
| Inches | mm | Size(L*W) | ㎡/Roll | Size(L*W) | ㎡/Roll | Size(L*W) | ㎡/Roll |
| 1/4" | 6 | 30 × 1 | 30 | 30 × 1.2 | 36 | 30 × 1.5 | 45 |
| 3/8" | 10 | 20 × 1 | 20 | 20 × 1.2 | 24 | 20 × 1.5 | 30 |
| 1/2" | 13 | 15 × 1 | 15 | 15 × 1.2 | 18 | 15 × 1.5 | 22.5 |
| 3/4" | 19 | 10 × 1 | 10 | 10 × 1.2 | 12 | 10 × 1.5 | 15 |
| 1" | 25 | 8 × 1 | 8 | 8 × 1.2 | 9.6 | 8 × 1.5 | 12 |
| 1 1/4" | 32 | 6 × 1 | 6 | 6 × 1.2 | 7.2 | 6 × 1.5 | 9 |
| 1 1/2" | 40 | 5 × 1 | 5 | 5 × 1.2 | 6 | 5 × 1.5 | 7.5 |
| 2" | 50 | 4 × 1 | 4 | 4 × 1.2 | 4.8 | 4 × 1.5 | 6 |
This product can be coated with different types of foils (aluminum foil or glass cloth) and have a factory-applied self-adhesive backing. The installation time is reduced more than 40% due to the ease in cutting as well as quick adhesion of the material.
| Technical Data | |||
|---|---|---|---|
| Property | Unit | Value | Test Method |
| Temperature range | °C | (-50 - 110) | GB/T 17794-1999 |
| Density range | Kg/m3 | 45-65Kg/m3 | ASTM D1667 |
| Water vapor permeability | Kg/(m.s.pa) | ≤0.91×10 ﹣¹³ | DIN 52 615 / BS 4370 Part 2 1973 |
| μ | - | ≥10000 | - |
| Thermal Conductivity | W/(m.k) | ≤0.030 (-20°C) | ASTM C 518 |
| ≤0.032 (0°C) | |||
| ≤0.036 (40°C) | |||
| Fire Rating | - | Class 0 & Class 1 | BS 476 Part 6 part 7 |
| Flame Spread and Smoke Developed Index | - | 25/50 | ASTM E 84 |
| Oxygen Index | - | ≥36 | GB/T 2406, ISO4589 |
| Water Absorption, %by Volume | % | 20% | ASTM C 209 |
| Dimension Stability | - | ≤5 | ASTM C534 |
| Fungi resistance | - | Good | ASTM 21 |
| Ozone resistance | - | Good | GB/T 7762-1987 |
| Resistance to U.V. and weather | - | Good | ASTM G23 |
This material is designed for condensation prevention and energy loss limitation in pipes, ducts, chillers, air conditioning equipment, hot systems, tanks, and fittings.
Yes, it can be coated with different types of foils, such as aluminum foil or glass cloth, and is available with a factory-applied self-adhesive backing to reduce installation time by over 40%.
The temperature range is from -50°C to 110°C, tested in compliance with standard GB/T 17794-1999.
The thermal conductivity is ≤0.030 W/(m.k) at -20°C, ≤0.032 W/(m.k) at 0°C, and ≤0.036 W/(m.k) at 40°C, tested according to ASTM C 518.
It achieves Class 0 & Class 1 fire ratings according to BS 476 Part 6 & Part 7, and meets the 25/50 standard for Flame Spread and Smoke Developed Index according to ASTM E 84.
Yes, the material exhibits "Good" resistance to fungi (ASTM 21), ozone (GB/T 7762-1987), and UV/weathering (ASTM G23).
