Wholesale Cryogenic rubber foam insulation system for cryogenic pipeline Manufacturer, Supplier

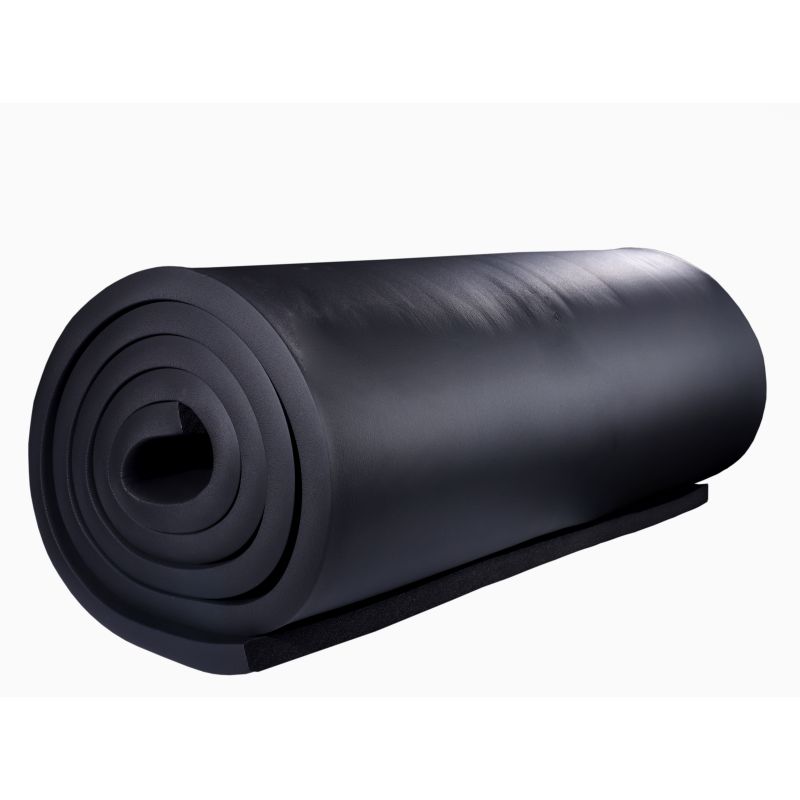

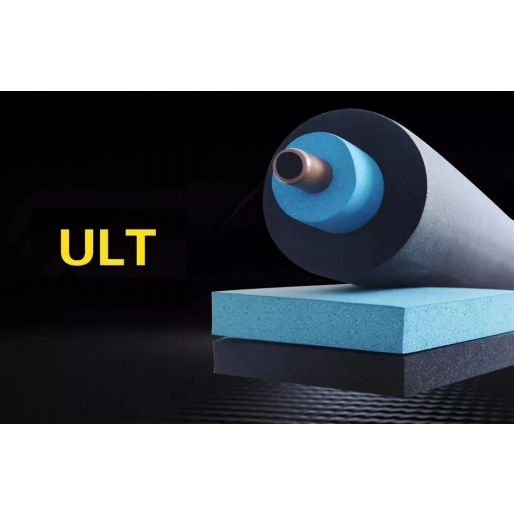

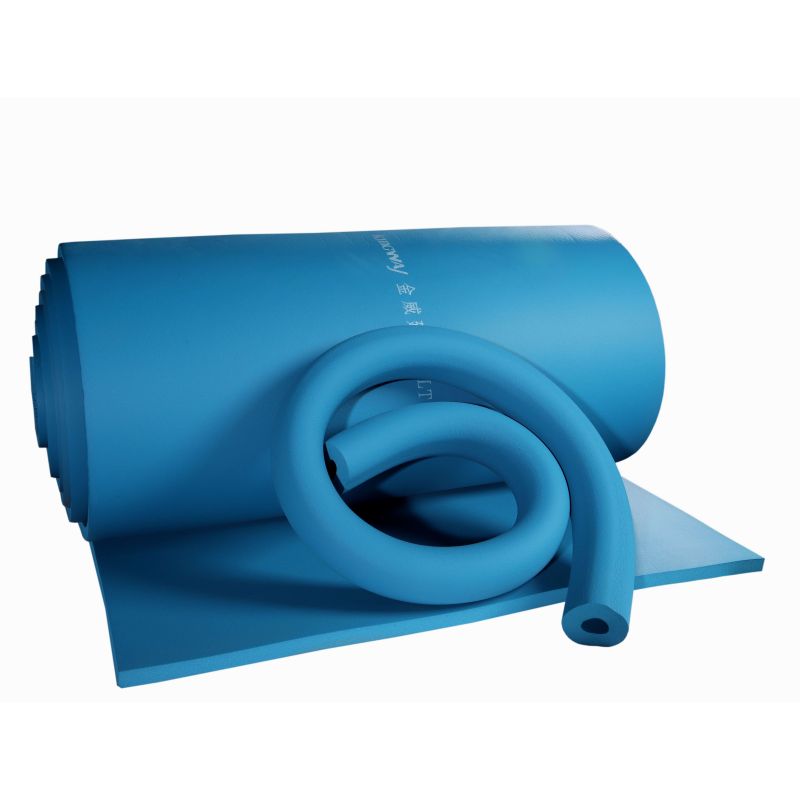

Kingflex ULT is a flexible, high density and mechanically robust, closed cell cryogenic thermal insulation material based on extruded elastomeric foam. The product has been specially developed for use on the import and export pipelines and process of facilities.
Insulation that maintains its flexibility at very low temperatures down to -200℃ to +125℃.
Reduces the risk of crack development and propagation.
Low thermal conductivity.
Low glass transition temperature.
Kingflex flexible ULT insulation system does not need to install moisture barrier. Due to the unique closed cell structure and polymer blend formulation, LT low temperature elastomeric materials have been highly resistant to water vapor permeation. This foamed material provides continuous resistance to moisture penetration throughout the thickness of the product. This feature of the product greatly extends the life of the entire cold insulation system and significantly reduces the risk of corrosion of the pipes under the insulation.
ULT Technical Data
Property
Unit
Value
Temperature range
°C
-200 to +110
Density range
Kg/m³
60-80
Thermal Conductivity
W/(m·k)
≤0.028 (-100°C)
≤0.021 (-165°C)
Fungi resistance
-
Good
Ozone resistance
-
Good
Resistance to U.V. and weather
-
Good
Frequently Asked Questions
QWhat is the temperature range for the ULT insulation system?
The system maintains its flexibility at extremely low temperatures, with an operating temperature range down from -200℃ to +125℃.
QDoes the ULT insulation system require an extra moisture barrier?
No, it does not require an additional moisture barrier. Its unique closed-cell structure and polymer blend formulation make the material highly resistant to water vapor permeation.
QHow does this material reduce the risk of pipeline corrosion?
The foamed material provides continuous resistance to moisture penetration throughout the entire thickness of the product, extending the life of the cold insulation system and preventing corrosion under insulation (CUI).
QWhat is the thermal conductivity of this low-temperature insulation?
The thermal conductivity values are extremely low, reaching ≤0.028 W/(m·k) at -100°C and ≤0.021 W/(m·k) at -165°C.
QHow does the material perform against weathering and ozone?
The material is tested to show good resistance to fungi, ozone, U.V. radiation, and general outdoor weathering conditions.
QWhat is the typical density range of the product?
The density range for the ULT insulation material is between 60 to 80 Kg/m³.
