Wholesale Flexible Cryogenic Insulation For Ultra Low Temperature System Factory, Quotes

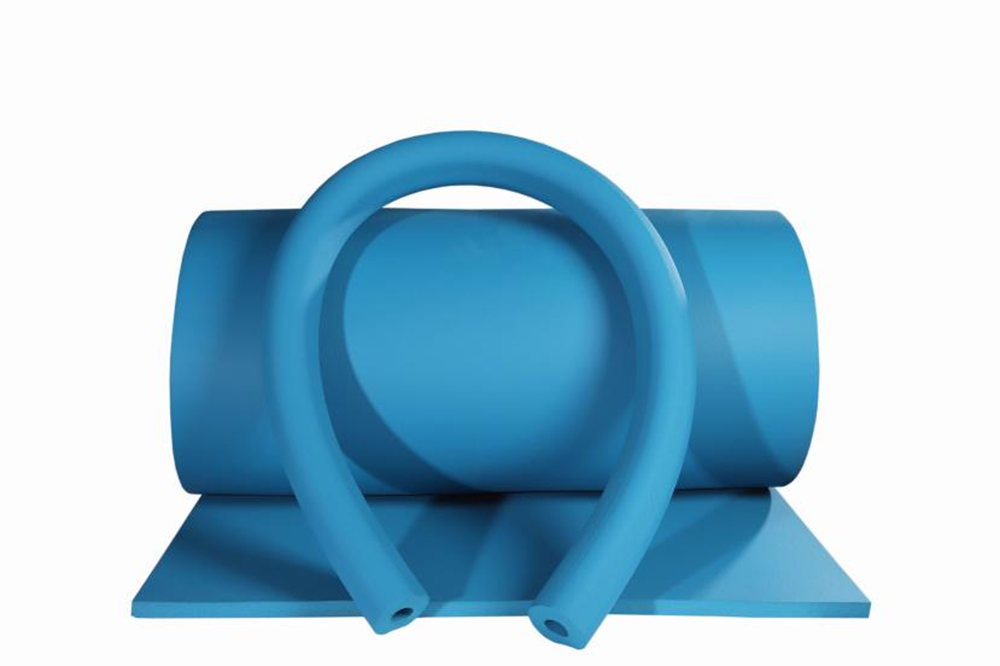

Cryogenic Rubber Foam is a reliable and effective solution for insulation in extreme cold environments. Its versatility, durability, and insulation properties make it a top choice for a wide range of industrial and commercial applications.
Less joint ensure the air tightness of the system and make the installation efficient.
Comprehensive cost is competitive.
Built-in moisture proof, no need to install the extra moisture barrier.
Without fiber, dust, CFC, HCFC.
No expansion joint is required.
One of the key features of Kingflex Cryogenic Rubber Foam is its exceptional insulation properties. Its closed-cell structure helps to prevent the transfer of heat, making it an ideal choice for use in cryogenic tanks, pipelines, and other cold storage applications.
Kingflex Dimension
Inches
mm
Size (L * W)
㎡ / Roll
3/4"
20
10 × 1
10
1"
25
8 × 1
8
Property
Base Material
Standard Test Method
Kingflex ULT
Kingflex LT
Thermal Conductivity
-100°C, 0.028 -165°C, 0.021
0°C, 0.033 -50°C, 0.028
ASTM C177
Density Range
60-80Kg/m³
40-60Kg/m³
ASTM D1622
Recommend Operation Temperature
-200°C to 125°C
-50°C to 105°C
-
Percentage Of Close Areas
>95%
>95%
ASTM D2856
Moisture Performance Factor
NA
<1.96x10⁻¹¹g/(m·s·Pa)
ASTM E 96
Wet Resistance Factor (μ)
NA
>10000
EN12086 EN13469
Water Vapor Permeability Coefficient
NA
0.0039g/h·m² (25mm thickness)
ASTM E 96
PH
≥8.0
≥8.0
ASTM C871
Tensile Strength (Mpa)
-100°C, 0.30 -165°C, 0.25
0°C, 0.15 -50°C, 0.218
ASTM D1623
Compressive Strength (Mpa)
-100°C, ≤0.3
-40°C, ≤0.16
ASTM D1621
Frequently Asked Questions
What are the primary benefits of Kingflex Cryogenic Rubber Foam?
Kingflex Cryogenic Rubber Foam ensures excellent system air tightness, lower installation costs, built-in moisture protection without additional barriers, and eliminates the need for expansion joints. It is free from fibers, dust, CFCs, and HCFCs.
What is the recommended operating temperature range for Kingflex ULT and LT?
Kingflex ULT operates effectively between -200°C and 125°C. Kingflex LT is recommended for temperatures ranging from -50°C to 105°C.
Does this insulation require an extra moisture barrier?
No, it has built-in moisture-proofing properties, which means you do not need to install any extra moisture barriers during application.
What is the close cell area percentage of Kingflex Cryogenic insulation?
Both Kingflex ULT and Kingflex LT have a close cell structure percentage exceeding 95% (>95%), preventing moisture penetration and thermal transfer.
What standard is used to test the thermal conductivity?
Thermal conductivity for both products is tested according to the ASTM C177 international standard.
What sizes and dimensions are available for Kingflex rolls?
It is available in thicknesses of 3/4" (20mm) with roll sizes of 10m x 1m, and 1" (25mm) with roll sizes of 8m x 1m.
