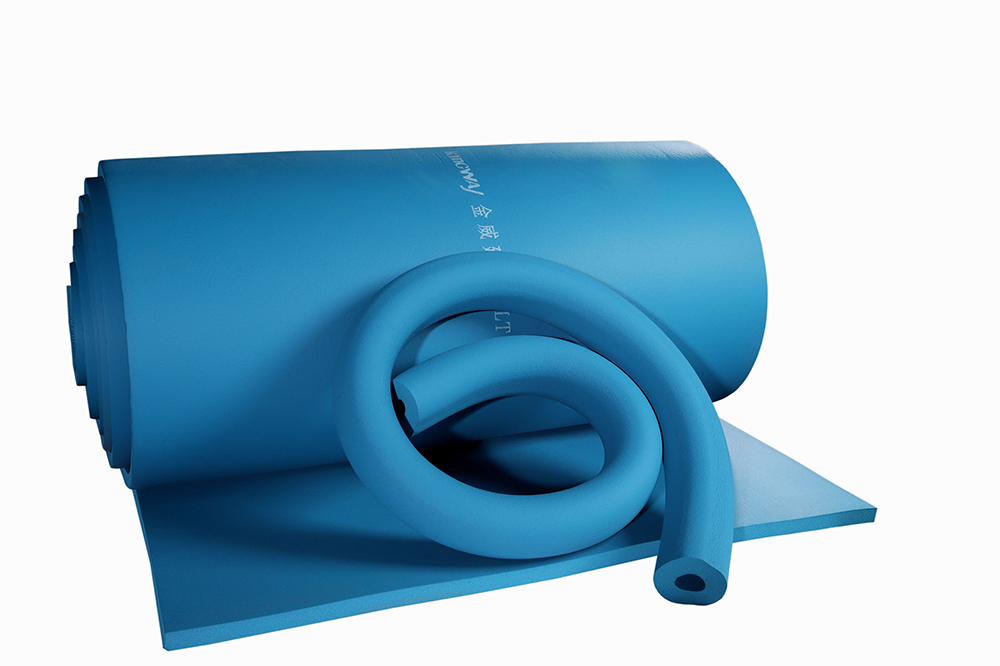

The product has been specially developed for use on the import or export pipelines and process areas of (liquefied natural gas) facilities. It is a part of Cryogenic multi layer configuration, providing low temperature flexibility to the system.
| Dimension Specification | |||
|---|---|---|---|
| Inches | mm | Size (L*W) | ㎡ / Roll |
| 3/4" | 20 | 10 × 1 | 10 |
| 1" | 25 | 8 × 1 | 8 |
| Main Property | Base Material | Test Method | |
|---|---|---|---|
| ULT Series | LT Series | ||
| Thermal Conductivity | -100°C, 0.028 -165°C, 0.021 |
0°C, 0.033 -50°C, 0.028 |
ASTM C177 |
| Density Range | 60-80Kg/m³ | 40-60Kg/m³ | ASTM D1622 |
| Recommend Operation Temperature | -200°C to 125°C | -50°C to 105°C | - |
| Percentage Of Close Areas | >95% | >95% | ASTM D2856 |
| Moisture Performance Factor | NA | <1.96x10⁻⁶ g/(m·s·Pa) | ASTM E 96 |
| Wet resistance Factor (μ) | NA | >10000 | EN12086 / EN13469 |
| Water Vapor Permeability Coefficient | NA | 0.0039g/h.m² (25mm thickness) | ASTM E 96 |
| PH | ≥8.0 | ≥8.0 | ASTM C871 |
| Tensile Strength (Mpa) | -100°C, 0.30 -165°C, 0.25 |
0°C, 0.15 -50°C, 0.218 |
ASTM D1623 |
| Compressive Strength (Mpa) | -100°C, ≤0.3 | -40°C, ≤0.16 | ASTM D1621 |
It is specially developed for import/export pipelines and process areas of liquefied natural gas (LNG) facilities, coal chemical MOT, low-temperature storage tanks, FPSO units, industrial/agricultural chemical plants, and nitrogen plants.
The ULT series is recommended for extreme temperatures ranging from -200°C to 125°C, while the LT series is designed for temperatures between -50°C to 105°C.
It is standardly available in two main configurations: 3/4" (20mm) thickness with a size of 10 × 1 (10 ㎡/Roll), and 1" (25mm) thickness with a size of 8 × 1 (8 ㎡/Roll).
According to ASTM D1622 test standards, the ULT series has a density range of 60-80 Kg/m³, while the LT series falls within 40-60 Kg/m³.
Both series feature a high closed-cell area percentage of over 95% (ASTM D2856). The LT series provides exceptional wet resistance (factor μ > 10,000) and a very low water vapor permeability coefficient of 0.0039g/h.m² at 25mm thickness.
The ULT series features a tensile strength of 0.30 Mpa at -100°C (0.25 Mpa at -165°C) and a compressive strength of ≤0.3 Mpa at -100°C. The LT series features a tensile strength of 0.15 Mpa at 0°C (0.218 Mpa at -50°C) and compressive strength of ≤0.16 Mpa at -40°C.
