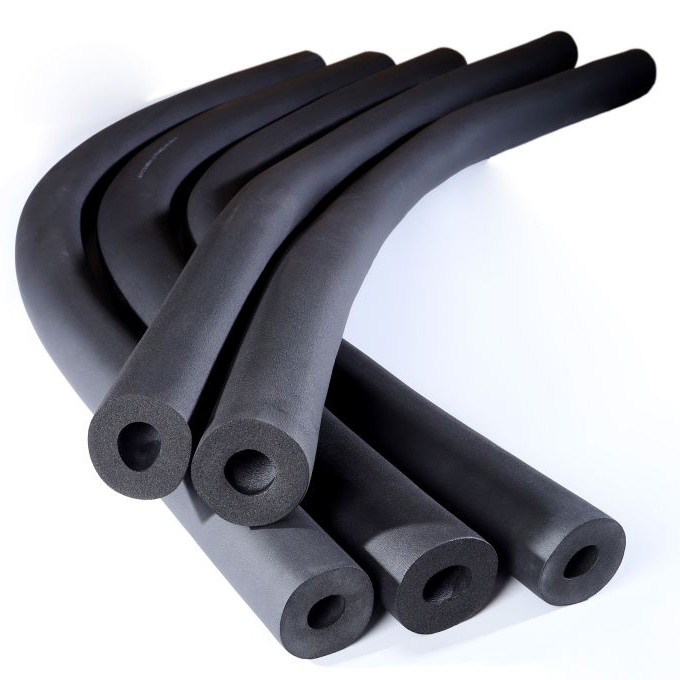

KINGFLEX INSULATION TUBE is an NBR/PVC-based closed cell, flexible elastomeric foam insulation. It is environmentally-friendly as it is free of CFCs, HFCs, HCFCs, PBDEs, formaldehyde and fibers. An EPA-registered antimicrobial agent is incorporated into the product providing additional protection against mold, fungal and bacterial growth.
Normal wall thicknesses of 1/4”, 3/8″, 1/2″, 3/4″,1″, 1-1/4”, 1-1/2″ and 2” (6, 9, 13, 19, 25 , 32, 40 and 50mm).
Standard Length with 6ft (1.83m) or 6.2ft(2m).
Independent closed foam structure, good heat insulation performance
Fire-resistant material
Widely used for the thermal insulation of various water and steam pipelines in the central air-conditioning freezer, building, ship, vehicle and other industries
ELASTOMERIC INSULATION TUBE heat-insulating & heat-preservation material is soft heat-insulating, heat-preservation and energy conservation materials made with advanced technology at home and abroad and advanced full-automatic continuous production line imported from abroad, and through development and improvement, using butyronitrile rubber and polyvinyl chloride (NBR, PVC) with best performance as main raw materials and other high quality auxiliary materials through foaming and so on special procedure.
Technical Data Sheet
Technical Data
Property
Unit
Value
Test Method
Temperature range
°C
(-50 - 110)
GB/T 17794-1999
Density range
Kg/m³
45-65Kg/m³
ASTM D1667
Water vapor permeability
Kg/(m.s.pa)
≤0.91×10 ﹣¹³
DIN 52 615 / BS 4370 Part 2 1973
μ
-
≥10000
-
Thermal Conductivity
W/(m.k)
≤0.030 (-20°C)
ASTM C 518
≤0.032 (0°C)
≤0.036 (40°C)
Fire Rating
-
Class 0 & Class 1
BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index
-
25/50
ASTM E 84
Oxygen Index
-
≥36
GB/T 2406, ISO4589
Water Absorption, % by Volume
%
20%
ASTM C 209
Dimension Stability
-
≤5
ASTM C534
Fungi resistance
-
Good
ASTM 21
Ozone resistance
Good
GB/T 7762-1987
Resistance to U.V. and weather
Good
ASTM G23
Frequently Asked Questions (FAQ)
What are the main raw materials used in this elastomeric insulation tube?
The insulation tube is manufactured using premium butyronitrile rubber and polyvinyl chloride (NBR, PVC) as the main raw materials, along with high-quality auxiliary materials processed through a special foaming procedure.
What is the operating temperature range for this insulation material?
This elastomeric insulation material operates effectively within a temperature range of -50°C to 110°C, making it suitable for a variety of hot and cold piping systems.
How does the closed-cell structure benefit heat insulation?
The independent closed foam structure provides low thermal conductivity (≤0.030 W/(m.k) at -20°C) and high resistance to water vapor permeability, which ensures long-lasting and stable thermal insulation performance.
What are the fire resistance standards of this product?
It is a fire-resistant material with a Class 0 & Class 1 fire rating according to BS 476 Part 6 & 7 testing methods. Additionally, it has a Flame Spread and Smoke Developed Index of 25/50 (ASTM E 84) and an Oxygen Index of ≥36.
What are the common applications of this elastomeric insulation tube?
It is widely used for the thermal insulation of various water and steam pipelines in central air-conditioning freezers, buildings, shipping, vehicles, and other industrial pipeline setups.
Does the material resist environmental factors like UV or fungi?
Yes, technical tests show that the material exhibits good resistance to fungi (ASTM 21), ozone (GB/T 7762-1987), and weathering/U.V. exposure (ASTM G23).
