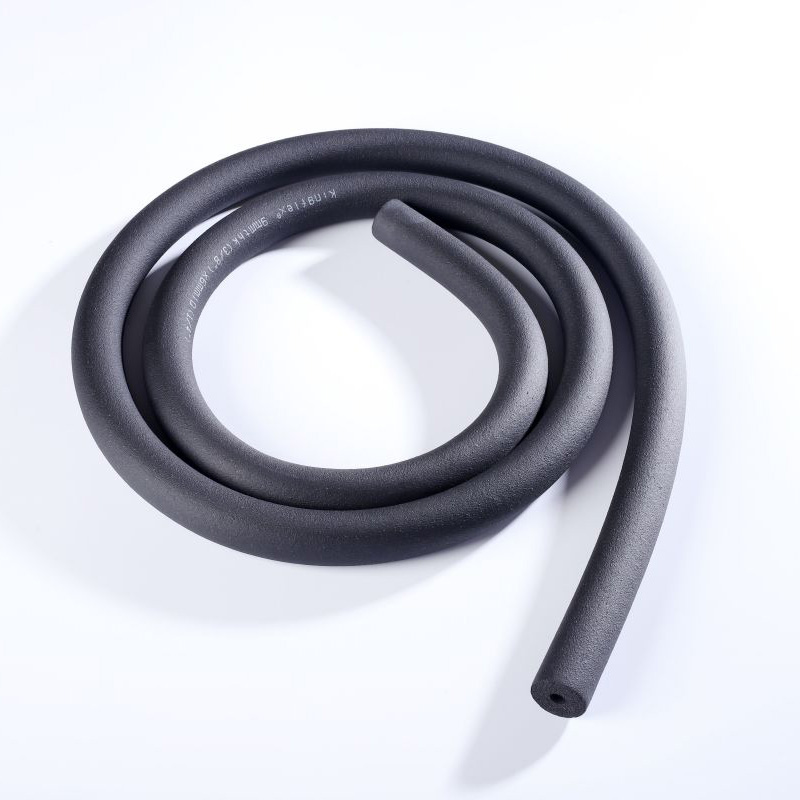

China Kingflex rubber foam product Manufacturers, Supplier
1 / 1
China Kingflex rubber foam product Manufacturers, Supplier

China Kingflex rubber foam product Manufacturers, Supplier

Kingflex rubber foam product of our company are produced by imported high-end technology and automatic continuous equipment. We have developed a rubber foam insulation material with excellent performance through in-depth research. The major materials we use are NBR/PVC. Normal wall thicknesses of 1/4”, 3/8″, 1/2″, 3/4″,1″, 1-1/4”, 1-1/2″ and 2” (6, 9, 13, 19, 25 , 32, 40 and 50mm). Standard Length with 6ft (1.83m) or 6.2ft(2m).
Send Inquiry

Product Description

Insulation product performance visual 1
Insulation product performance visual 2
Insulation product performance visual 3
Insulation product performance visual 4
Excellent Performance
The insulation pipe is made of nitrile rubber and polyvinyl chloride, free of fiber dust, benzaldehyde and chlorofluorocarbons. In addition, it has low electrical and thermal conductivity, good moisture resistance and fire resistance.
High Durability
Features excellent tensile strength along with high-grade anti-aging and anti-corrosion properties to ensure long-term stability and system integrity.
Easy Installation
Insulated pipes can be easily installed on new pipes as well as used in existing pipes. You just cut it and glue it on. Moreover, it has no negative effect on the performance of the insulation tube.
Rubber foam product overview
Rubber foam product is generally black in color, other colors are available upon request. The product comes in tube, roll and sheet form. The extruded flexible tube are specially designed to fit the standard diameters of copper, steel and PVC piping. Sheets are available in standards precut sizes or in rolls.
Technical Data Sheet
Technical Data
Property Unit Value Test Method
Temperature range °C (-50 - 110) GB/T 17794-1999
Density range Kg/m3 45-65Kg/m3 ASTM D1667
Water vapor permeability Kg/(m.s.pa) ≤0.91×10 ﹣¹³ DIN 52 615 / BS 4370 Part 2 1973
μ - ≥10000
Thermal Conductivity W/(m.k) ≤0.030 (-20°C) ASTM C 518
≤0.032 (0°C)
≤0.036 (40°C)
Fire Rating - Class 0 & Class 1 BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index - 25/50 ASTM E 84
Oxygen Index - ≥36 GB/T 2406,ISO4589
Water Absorption,%by Volume % 20% ASTM C 209
Dimension Stability - ≤5 ASTM C534
Fungi resistance - Good ASTM 21
Ozone resistance Good GB/T 7762-1987
Resistance to U.V. and weather Good ASTM G23
Application display 1
Application display 2
Application display 3
Application display 4
Application display 5
Application display 6
Application display 7
Frequently Asked Questions
What materials are the insulation pipes made of?
The insulation pipes are made of high-quality nitrile rubber and polyvinyl chloride. They are completely free of fiber dust, benzaldehyde, and chlorofluorocarbons.
What are the primary performance features of this rubber foam insulation?
It features low thermal and electrical conductivity, excellent moisture and fire resistance, high tensile strength, and outstanding anti-aging and anti-corrosion properties.
How is the insulation pipe installed on existing pipelines?
It is designed for easy installation. You can simply cut the insulation tube, place it over the pipe, and glue it securely. This process has no negative effect on the overall insulation performance.
What forms, sizes, and colors are available?
The products are supplied in tube, roll, and sheet forms. The tubes are designed to fit standard copper, steel, and PVC pipes. While the standard color is black, other colors can be customized upon request.
What is the fire rating and temperature range of the product?
According to the technical data, it has a fire rating of Class 0 & Class 1 (BS 476 Part 6 & 7) and is stable within a wide temperature range of -50°C to 110°C.
Is this insulation resistant to weathering and UV exposure?
Yes. The technical tests (including ASTM G23, ASTM 21, and GB/T 7762-1987) confirm that the product has good resistance to UV rays, weathering, fungi, and ozone.
