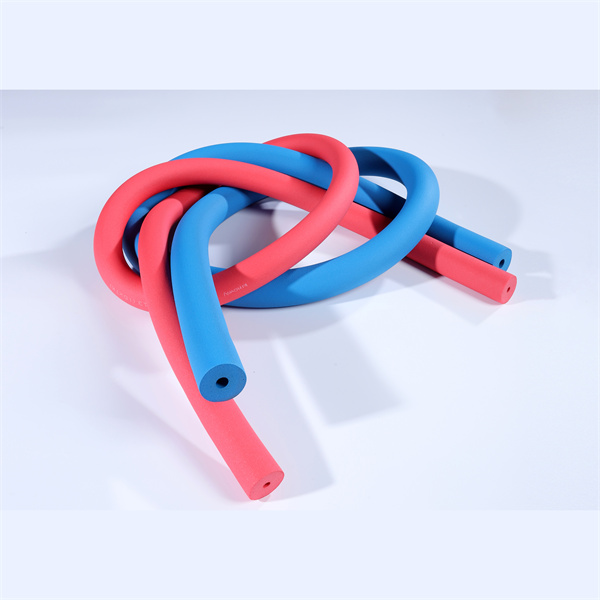

The insulated pipe is made of NBR and PVC. It doesn't contain fibrous dust, benzaldehyde and chlorofluorocarbons. Moreover, it has low conductivity & heat conductivity, good moisture resistance, and fireproof.
The insulated pipe can be widely used in cooling unit and equipment of central air conditioning, freezing water pipe, condensing water pipe, air ducts, hot-water pipe and so on.
The insulated pipe not only can be easily installed with the new pipeline, but also can be used in the existing pipeline. The only thing you need to do is to cut it, then glue it. Moreover, it doesn't have negative influence of the performance of the insulated pipe.
The wall thickness ranges from 6.25 mm to 50mm, and the inside diameter is from 6mm to 89mm.
The products are stock and the quantity of supplying is large.
We can offer the service according to the customers' requests.
| Technical Data | |||
|---|---|---|---|
| Property | Unit | Value | Test Method |
| Temperature range | °C | (-50 - 110) | GB/T 17794-1999 |
| Density range | Kg/m³ | 45-65Kg/m³ | ASTM D1667 |
| Water vapor permeability | Kg/(m.s.pa) | ≤0.91×10⁻¹³ | DIN 52 615 / BS 4370 Part 2 1973 |
| μ | - | ≥10000 | - |
| Thermal Conductivity | W/(m.k) | ≤0.030 (-20°C) | ASTM C 518 |
| ≤0.032 (0°C) | |||
| ≤0.036 (40°C) | |||
| Fire Rating | - | Class 0 & Class 1 | BS 476 Part 6 part 7 |
| Flame Spread and Smoke Developed Index | - | 25/50 | ASTM E 84 |
| Oxygen Index | - | ≥36 | GB/T 2406, ISO4589 |
| Water Absorption, %by Volume | % | 20% | ASTM C 209 |
| Dimension Stability | - | ≤5 | ASTM C534 |
| Fungi resistance | - | Good | ASTM 21 |
| Ozone resistance | Good | GB/T 7762-1987 | |
| Resistance to U.V. and weather | Good | ASTM G23 | |
The insulated pipes are made of NBR (Nitrile Butadiene Rubber) and PVC (Polyvinyl Chloride). They are free from fibrous dust, benzaldehyde, and chlorofluorocarbons, ensuring a safe and environmentally friendly solution.
These insulated pipes are widely used in central air conditioning cooling units, freezing water pipes, condensing water pipes, air ducts, hot-water pipes, and various other industrial or domestic piping systems.
Installation is very simple. The pipes can be installed on new pipelines or retrofitted onto existing ones. You only need to cut the material to size and secure it with glue, without affecting the performance of the insulation.
We offer a complete range of models to choose from, with wall thicknesses ranging from 6.25 mm to 50 mm, and inside diameters ranging from 6 mm to 89 mm.
Our insulated pipes meet high safety standards, achieving Class 0 & Class 1 fire ratings according to BS 476 Part 6 & 7 test methods.
Yes, according to ASTM test methods, the insulated pipes exhibit excellent resistance to fungi, ozone, U.V. radiation, and general outdoor weathering conditions.
