China Kingflex Flexible Elastomeric NBR Foam Rolls Supplier, Quotes

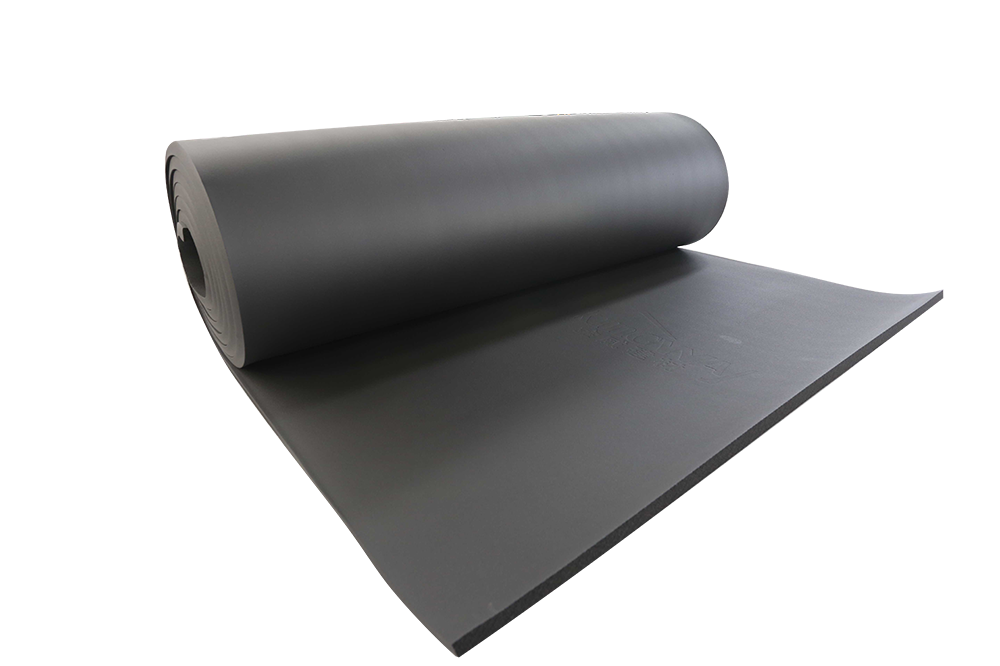

Kingflex flexible elastomeric rubber foam sheet roll for HVAC part.

Send Inquiry

Product Description

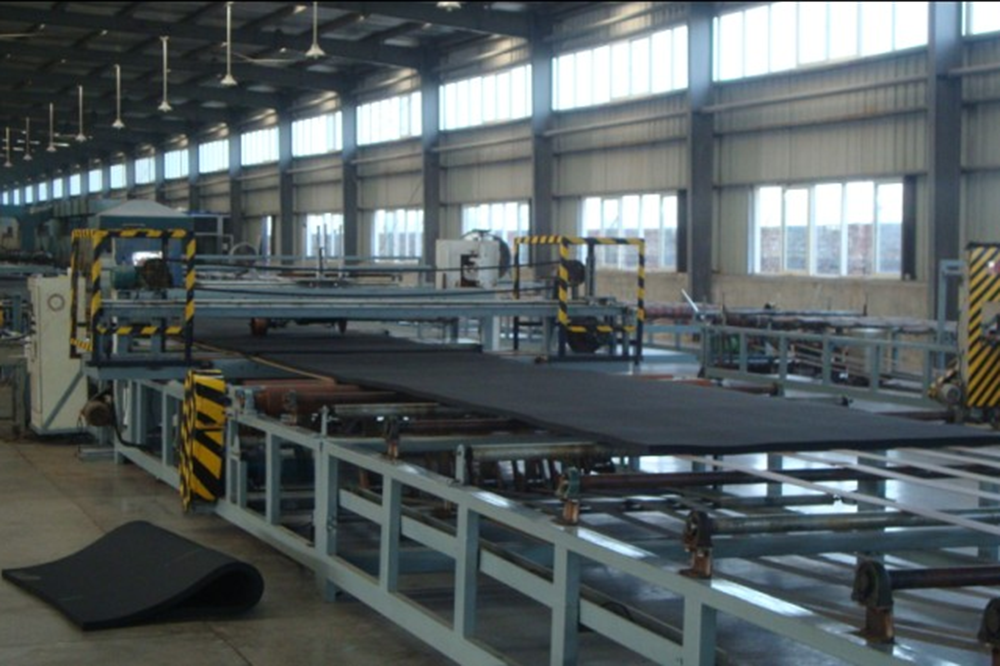

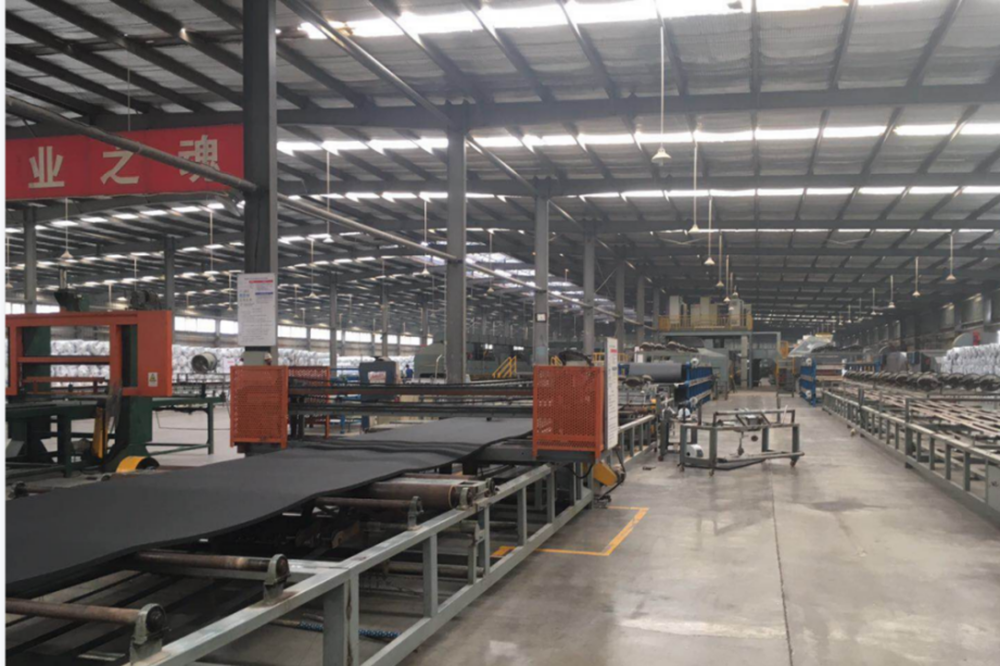

Kingflex rubber foam insulation material is a flexible and robust insulation material which offers easy and fast installation process and nevertheless a long and durable lifespan. It is made with advanced technology and advanced full-automatic continuous production line imported from abroad, using polyvinyl Chloride (NBR, PVC) as main raw materials and other high quality auxiliary materials through foaming and so on special procedure.

Kingflex Dimension
Thickness		Width 1m		Width 1.2m		Width 1.5m
Inches	mm	Size(L*W)	㎡/Roll	Size(L*W)	㎡/Roll	Size(L*W)	㎡/Roll
1/4"	6	30 × 1	30	30 × 1.2	36	30 × 1.5	45
3/8"	10	20 × 1	20	20 × 1.2	24	20 × 1.5	30
1/2"	13	15 × 1	15	15 × 1.2	18	15 × 1.5	22.5
3/4"	19	10 × 1	10	10 × 1.2	12	10 × 1.5	15
1"	25	8 × 1	8	8 × 1.2	9.6	8 × 1.5	12
1 1/4"	32	6 × 1	6	6 × 1.2	7.2	6 × 1.5	9
1 1/2"	40	5 × 1	5	5 × 1.2	6	5 × 1.5	7.5
2"	50	4 × 1	4	4 × 1.2	4.8	4 × 1.5	6

1. Low thermal conductivity

Cellular foam structure, low thermal conductivity, high surface heat release coefficient, good thermal insulation effect.

2. Closed-cell foam structure

Closed pore structure, independent bubble holes are not connected, forming a closed vapor barrier layer, which can form multiple barriers to water vapor molecules. Even if the pipe surface is damaged, it can still achieve vapor isolation.

3. Good flexibility

Rubber foam rolls are flexible, suitable for all kinds of bends and irregular pipes, convenient for construction, saving work and materials.

Kingflex Technical Data
Property	Unit	Value	Test Method
Temperature range	°C	(-50 - 110)	GB/T 17794-1999
Density range	Kg/m3	45-65Kg/m3	ASTM D1667
Water vapor permeability	Kg/(m.s.pa)	≤0.91×10 ﹣¹³	DIN 52 615 / BS 4370 Part 2 1973
μ	-	≥10000	-
Thermal Conductivity	W/(m.k)	≤0.030 (-20°C)	ASTM C 518
		≤0.032 (0°C)
		≤0.036 (40°C)
Fire Rating	-	Class 0 & Class 1	BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index	-	25/50	ASTM E 84
Oxygen Index	-	≥36	GB/T 2406, ISO4589
Water Absorption, %by Volume	%	20%	ASTM C 209
Dimension Stability	-	≤5	ASTM C534
Fungi resistance	-	Good	ASTM 21
Ozone resistance		Good	GB/T 7762-1987
Resistance to U.V. and weather		Good	ASTM G23

Frequently Asked Questions

What are the primary raw materials used in Kingflex insulation?

Kingflex insulation material is primarily manufactured from polyvinyl Chloride (NBR, PVC) as the main raw materials, processed along with other high-quality auxiliary materials using advanced foaming technology.

How does the closed-cell foam structure improve insulation performance?

The closed-cell structure consists of independent, unconnected bubble holes. This creates a highly effective, built-in vapor barrier that prevents water vapor from penetrating, ensuring long-term thermal isolation even if the outer surface is damaged.

Is Kingflex insulation suitable for bending or irregular piping?

Yes. Because of its outstanding flexibility, these rubber foam rolls can easily conform to all types of bends and complex pipe geometries. This makes installation faster and reduces labor and material wastage.

What is the operational temperature range of this rubber foam?

According to the technical data, Kingflex rubber foam performs reliably across a temperature range of -50°C to 110°C, verified by test method GB/T 17794-1999.

What are the fire performance and safety ratings of this material?

It achieves a Class 0 & Class 1 fire rating according to BS 476 Part 6 & 7. Additionally, it has a Flame Spread and Smoke Developed Index of 25/50 (ASTM E 84) and an Oxygen Index of ≥36 (GB/T 2406, ISO4589).

How stable is the material under environmental exposure like UV and ozone?

The technical data shows that Kingflex has good resistance to fungi (ASTM 21), ozone (GB/T 7762-1987), and UV/weathering (ASTM G23), ensuring a long and durable operational lifespan.
