China Kingflex Insulation Rubber Foam Sheet Supplier, Factories

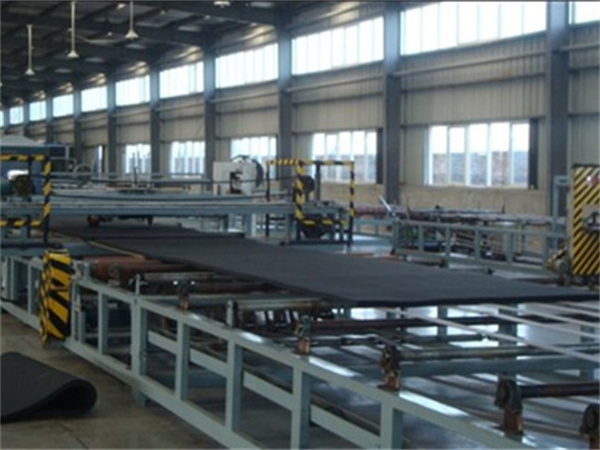

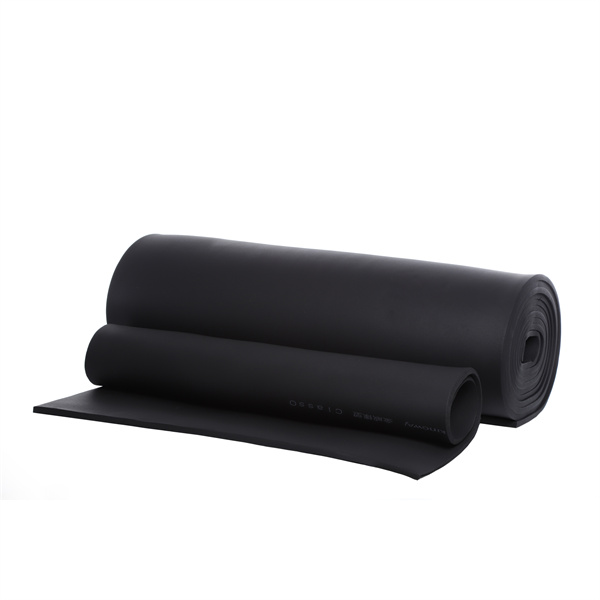

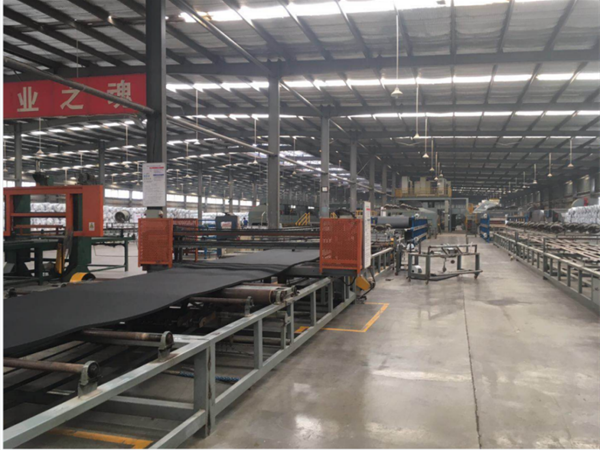

Kingflex Insulation Rubber Foam Sheet are produced by imported high-end technology and automatic continuous equipment. We have developed a rubber foam insulation material with excellent performance through in-depth research. The major raw materials we use are NBR/PVC.

Send Inquiry

Product Description

Insulation Dimension Specifications

Dimension Specifications
Thickness		Width 1m		Width 1.2m		Width 1.5m
Inches	mm	Size(L*W)	㎡/Roll	Size(L*W)	㎡/Roll	Size(L*W)	㎡/Roll
1/4"	6	30 × 1	30	30 × 1.2	36	30 × 1.5	45
3/8"	10	20 × 1	20	20 × 1.2	24	20 × 1.5	30
1/2"	13	15 × 1	15	15 × 1.2	18	15 × 1.5	22.5
3/4"	19	10 × 1	10	10 × 1.2	12	10 × 1.5	15
1"	25	8 × 1	8	8 × 1.2	9.6	8 × 1.5	12
1 1/4"	32	6 × 1	6	6 × 1.2	7.2	6 × 1.5	9
1 1/2"	40	5 × 1	5	5 × 1.2	6	5 × 1.5	7.5
2"	50	4 × 1	4	4 × 1.2	4.8	4 × 1.5	6

Product Overview

Our Class 0/1 insulation is generally black in color, with other colors available upon request. The product is manufactured in tube, roll, and sheet forms. The extruded flexible tubes are specially designed to fit the standard diameters of copper, steel, and PVC piping. Sheets are available in standard pre-cut sizes or in rolls.

Technical Specifications

Technical Data Sheet
Property	Unit	Value	Test Method
Temperature range	°C	-50 to 110	GB/T 17794-1999
Density range	Kg/m³	45-65	ASTM D1667
Water vapor permeability	Kg/(m·s·Pa)	≤ 0.91 × 10⁻¹³	DIN 52 615 / BS 4370 Part 2 1973
μ (Water vapor diffusion resistance)	-	≥ 10000	-
Thermal Conductivity	W/(m·k)	≤ 0.030 (-20°C)	ASTM C 518
		≤ 0.032 (0°C)
		≤ 0.036 (40°C)

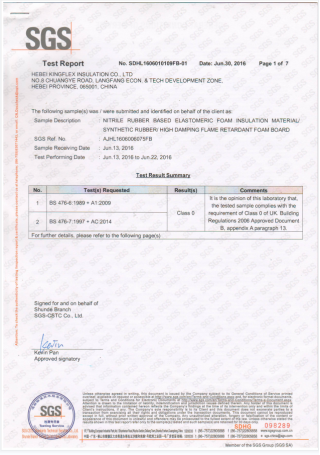

Fire Rating	-	Class 0 & Class 1	BS 476 Part 6 & Part 7
Flame Spread and Smoke Developed Index	-	25/50	ASTM E 84
Oxygen Index	-	≥ 36	GB/T 2406, ISO 4589
Water Absorption, % by Volume	%	20%	ASTM C 209
Dimension Stability	-	≤ 5	ASTM C534
Fungi resistance	-	Good	ASTM 21
Ozone resistance	-	Good	GB/T 7762-1987
Resistance to U.V. and weather	-	Good	ASTM G23

Key Features & Performance Benefits

✔

Low Conductivity Factor

Offers superior thermal barrier performance, reducing energy loss effectively.

✔

Good Fire-Blocking

Meets Class 0 and Class 1 standards for reliable fire containment and safety protection.

✔

Damp-Proof Closed Pore Foaming

Closed cell design prevents moisture ingress and maintains consistent performance.

✔

Good Pliability

High elasticity and flexibility make it adaptable to complex configurations and pipe turns.

✔

Easy Installation & Neat Finish

Saves labor costs with a quick installation process that yields an aesthetically clean appearance.

✔

Safe & Chemical Resistant

Non-irritating to skin, safe for health, and highly resistant to acids and alkalis.

Frequently Asked Questions

1. What formats and options are available for this Class 0/1 insulation?

The insulation is available in tube, roll, and sheet forms. The standard color is black, but other custom colors can be requested to match specific requirements.

2. Can the flexible tubes fit standard pipe dimensions?

Yes. The extruded flexible insulation tubes are engineered to fit standard outer diameters of copper, steel, and PVC piping structures seamlessly.

3. What is the working temperature range of the insulation material?

The material exhibits safe and stable performance under a broad temperature scope ranging from -50°C to 110°C, tested in compliance with GB/T 17794-1999 standards.

4. How does the closed-pore structure improve moisture resistance?

The closed-cell foaming configuration yields a very low water vapor permeability (≤ 0.91 × 10⁻¹³ Kg/(m·s·Pa)), preventing moisture absorption and protecting pipes from condensation.

5. What fire safety ratings does this insulation hold?

It holds Class 0 and Class 1 fire ratings according to BS 476 Part 6 & Part 7 testing, and has a Flame Spread and Smoke Developed Index of 25/50 under ASTM E 84.

6. Does the insulation withstand environmental and biological degradation?

Yes. It features good resistance to ozone (GB/T 7762-1987), fungi growth (ASTM 21), and UV weathering (ASTM G23), ensuring durability for long-term deployments.
