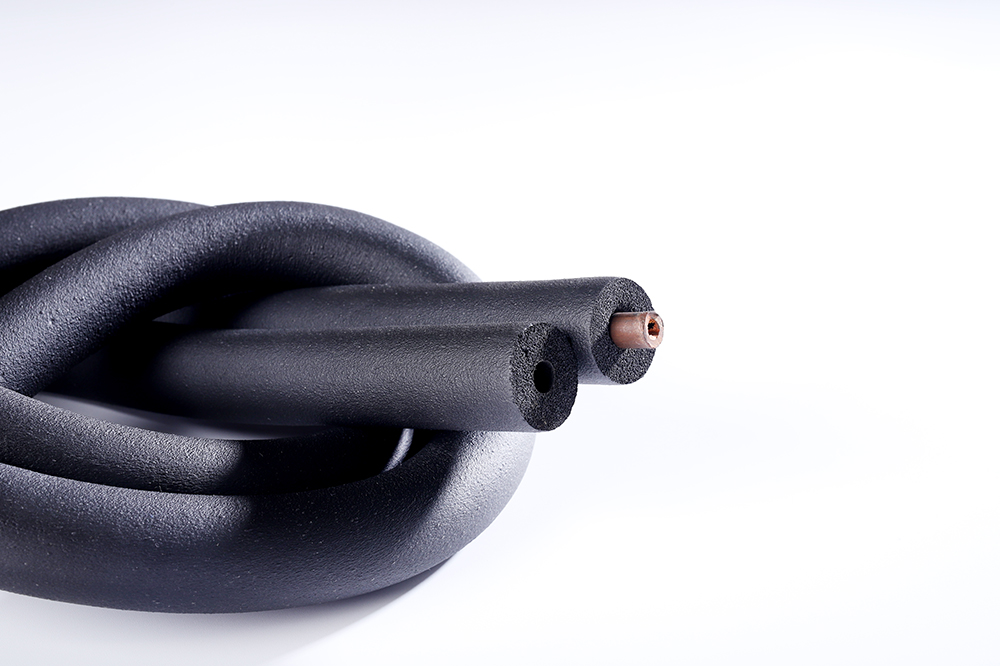

Wholesale The rubber foam insulation tube products Supplier, Suppliers

We produce Rubber-plsatic Foamed Heat Preservation Products(PVC/NBR)by introducing newest technology and craft and automatic processing line.The major materials we use are NBR/PVC,which are undergone ban bury,vulcanization and foam,Therefore,the main characteristics are:Low density,close bubble structure,low thermal conductivity,Water vapor Transmissibility extremely low,low water -absorptive ability,Fire-proof performance well,superior anti-agde performance,good flexibility,easy to install.This product is suitable for a wide temperature range,from -50℃ is to 110℃ ,also has good anti-adge performance and durability. Normal wall thicknesses of 1/4”, 3/8″, 1/2″, 3/4″,1″, 1-1/4”, 1-1/2″ and 2” (6, 9, 13, 19, 25 , 32, 40 and 50mm). Standard Length with 6ft (1.83m) or 6.2ft(2m).

Send Inquiry

Product Description

Key Features & Benefits

Excellent fire-resistance performance & Sound absorption.

Low thermal conductivity (K-Value).

Good moisture resistance.

No crust rough skin.

Good pliability and good anti-vibration.

Environmentally friendly.

Easy to install & Nice appearance.

High oxygen index and low smoke density.

The rubber foam insulation tube products are produced by imported high-end technology and automatic continuous equipment. A rubber foam insulation material with excellent performance has been developed through in-depth research. The major materials used are NBR/PVC.

Technical Data
Property	Unit	Value	Test Method
Temperature range	°C	(-50 - 110)	GB/T 17794-1999
Density range	Kg/m³	45-65Kg/m³	ASTM D1667
Water vapor permeability	Kg/(m.s.pa)	≤0.91×10 ﹣¹³	DIN 52 615 / BS 4370 Part 2 1973
μ	-	≥10000	-
Thermal Conductivity	W/(m.k)	≤0.030 (-20°C)	ASTM C 518
		≤0.032 (0°C)
		≤0.036 (40°C)
Fire Rating	-	Class 0 & Class 1	BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index	-	25/50	ASTM E 84
Oxygen Index	-	≥36	GB/T 2406, ISO4589
Water Absorption, %by Volume	%	20%	ASTM C 209
Dimension Stability	-	≤5	ASTM C534
Fungi resistance	-	Good	ASTM 21
Ozone resistance	-	Good	GB/T 7762-1987
Resistance to U.V. and weather	-	Good	ASTM G23

Frequently Asked Questions

What are the primary materials used in rubber foam insulation tubes?

The primary materials used in these insulation tubes are high-quality NBR (Nitrile Butadiene Rubber) and PVC (Polyvinyl Chloride), manufactured through advanced, automatic continuous extrusion technology.

What is the fire resistance rating of this insulation material?

The material achieves Class 0 & Class 1 fire ratings according to BS 476 Part 6 and 7 testing standards, featuring a high oxygen index (≥36) and extremely low smoke density.

Can this insulation tube be used in extreme temperatures?

Yes. The temperature range of this rubber foam insulation material spans from -50°C up to 110°C, making it highly stable and suitable for both cold and hot piping systems.

Why does the insulation perform well in humid environments?

It features excellent moisture resistance with a high water vapor permeability resistance factor (μ ≥ 10000), preventing condensation build-up and securing long-term thermal efficiency.

Is this product safe for the environment and easy to install?

Absolutely. The material is environmentally friendly, clean, dust-free, and offers good pliability and vibration resistance, allowing quick and neat installation.
